The Effects of Monetary Policy Shocks on Stock Price Volatility: Evidence from the Australian Economy

Abstract. This research project aims to measure the effects of monetary policy shocks on stock price volatility using the Bayesian Structural Vector Autoregressive Model in the Australian economy from 1990 to 2023.

Keywords. Bayesian Structural VARs, Monetary policy shocks, Stock price volatility, Impulse response function

1. Introduction

This research project aims to measure the effects of monetary policy shocks on stock price volatility using a Bayesian Structural Vector Autoregressive Model in the Australian economy from 1990 to 2023. The question addressed in this study is: How does an increase in the cash rate target affect stock price volatility in the Australian market?

The behaviour and decisions of stakeholders–including investors, businesses, and financial institutions–in financial markets are primarily affected by stock price volatility. As such, the effect of change in stock prices plays a large role in the Australian economy. This study aims to measure the effects of monetary policy shocks on stock price volatility using the Bayesian Structural Vector Autoregression model, focusing on the Australian economy.

2. Data

The study includes data from the Reserve Bank of Australia (RBA), the Australian Bureau of Statistics (ABS), and Yahoo Finance from 1990 to 2023, adjusted quarterly from 1990 Q1 to 2023 Q4, including 136 observations. The variables selected for our analysis include:

   GDP (GDP): real GDP, expressed as per billion AUD
   Interest rates (ICR): cash rate target, expressed as a percentage
   Consumer price index (CPI): All groups Consumer Price Index, expressed as an index number
   Exchange rates (EXR): exchange rates from AUD to USD, expressed in USD
   Stock prices (STP): stock prices using the adjusted closing price of the All Ordinaries Index, expressed in AUD
   Stock price volatility (VOL): the log of bipower variation calculated using the log of the sum of the
   multiplication of consecutive absolute logarithmic returns of stock prices (STP) multiplied by normalisation
   factor \(\frac{\pi}{2}\) where \(log[log(\frac{\pi}{2} \sum_{t=2}^{T} |r_{t}| \cdot |r_{t-1}|)]\)

Table 1 shows the data sources.

Variable	Code	Data source
GDP	GGDPCVGDP	RBA
Interest rates	FIRMMCRTD	RBA
Consumer Price Index	A2325846C	ABS
Exchange rates	FXRUSD	RBA
Stock prices	^AORD	Yahoo Finance

Table 1: Data source

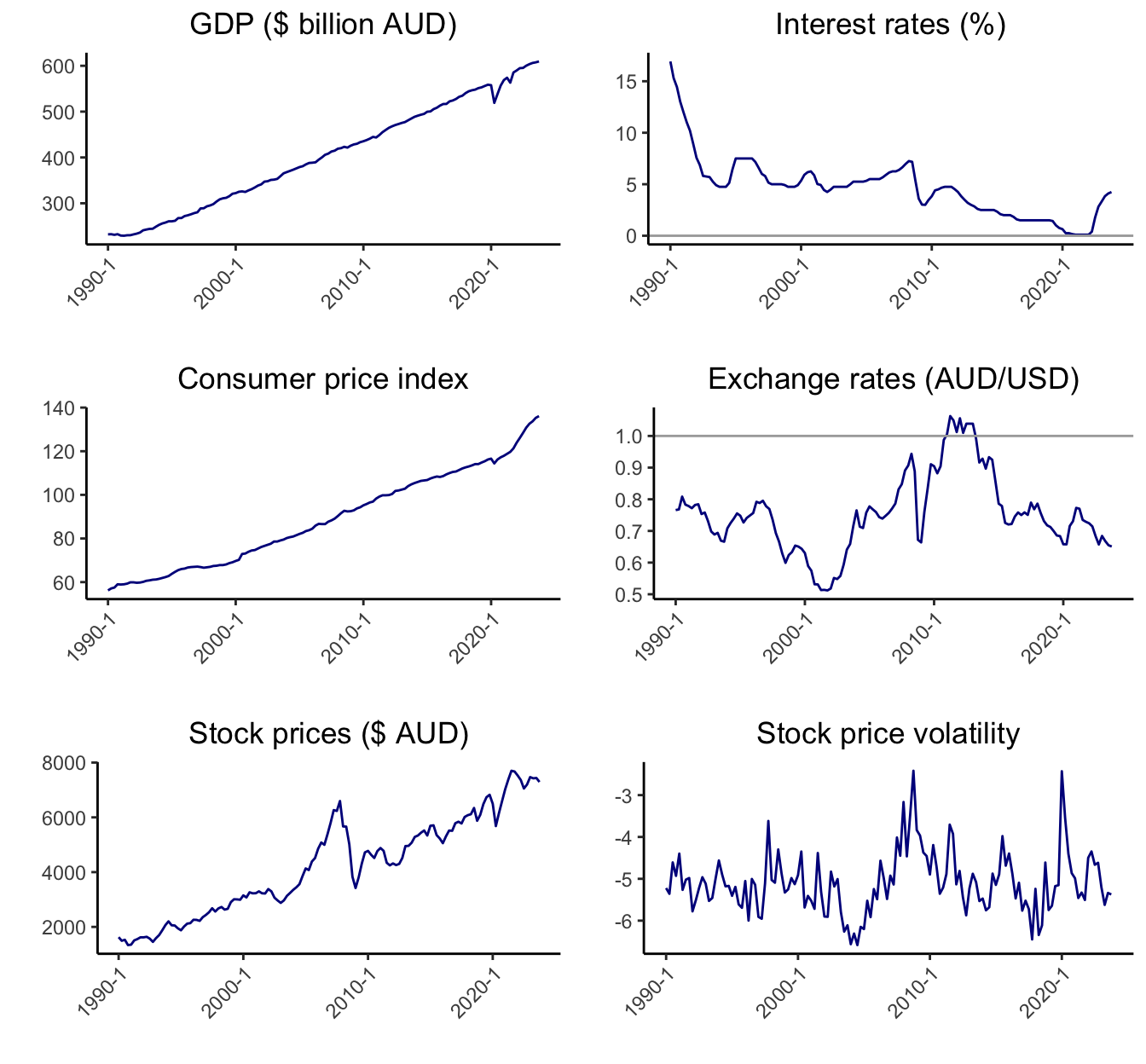

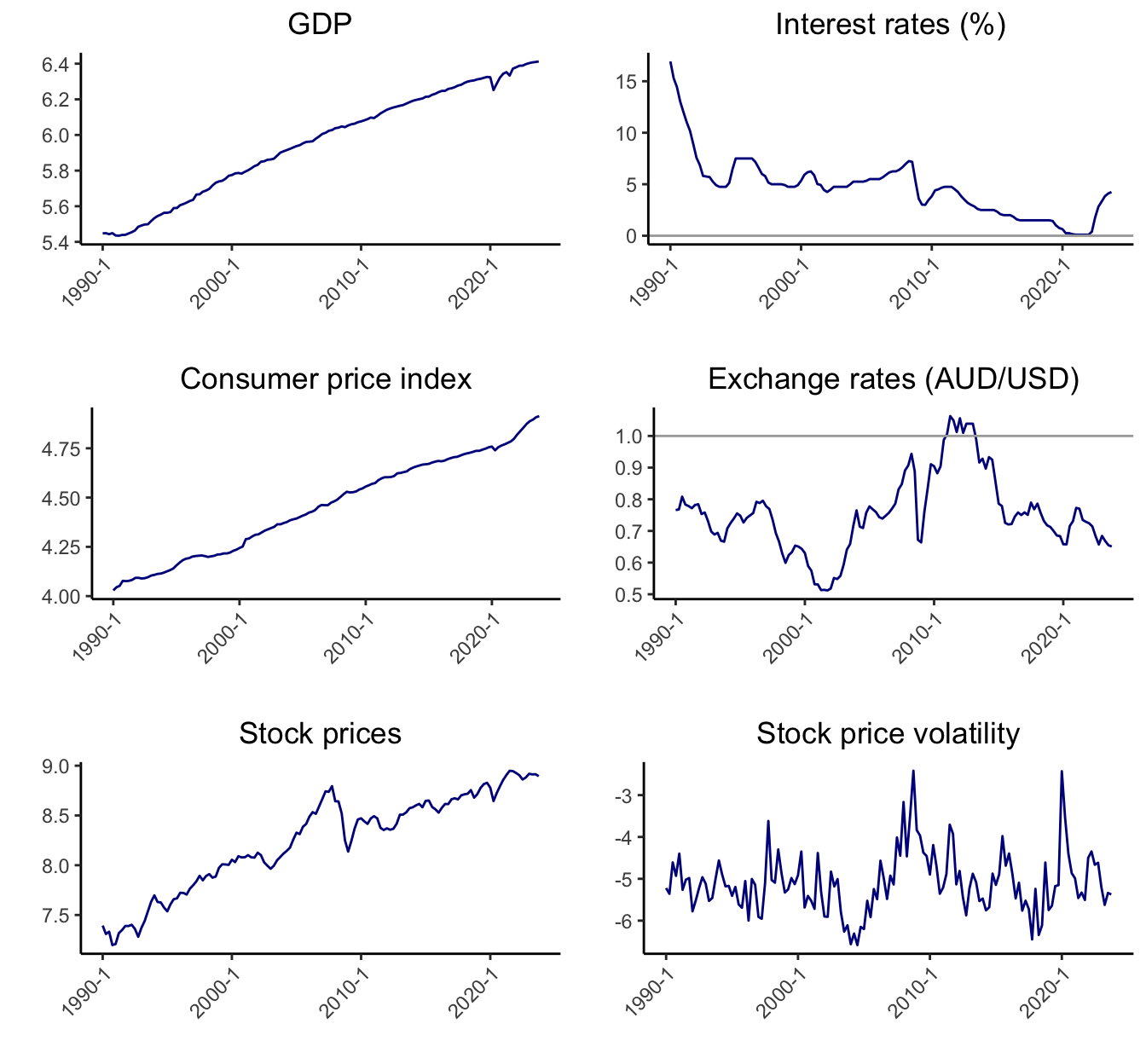

GDP, interest rates, consumer price index, exchange rates, stock prices and stock price volatility are plotted in Figure 1. GDP exhibits an upward trend except for a trough during COVID-19. Interest rates depict a gradual downward trend; however, from 2022 Q4, there has been a significant increase in interest rates. There is an overall upward trend of stock prices, however, with the exception of the Global Financial Crisis, where the stock prices have shown great volatility by increasing and decreasing in large amounts.

Figure 1: Time series plots of the variables

Table 2 demonstrates the descriptive statistics of the variables from 1990 Q1 to 2023 Q4.

Variable	Unit	Mean	SD	Min	Max	n
GDP	$ billion AUD	403.360	115.589	229.170	609.521	136
Interest rates	Percentage	4.620	2.922	0.100	16.923	136
Consumer price index	Index	88.772	21.859	56.200	136.100	136
Exchange rates	$ USD	0.754	0.122	0.512	1.063	136
Stock prices	$ AUD	4224.289	1809.808	1336.632	7701.124	136
Stock price volatility		-5.093	0.724	-6.584	-2.418	136

Table 2: Summary of descriptive statistics

In our model, GDP, consumer price index, and stock prices are transformed into a logarithmic scale.

Figure 2 shows the variables… stock price volatility is log of log stock price..

Figure 2: Time series plots of the data in logarithmic scale

2.1 Diagnostic Tests

2.1.1 Autocorrelation/Partial autocorrelation Function Plots

The autocorrelation test is used to identify the presence of serial correlation between a variable’s current value and its lagged value, indicating that past values influence the current value.

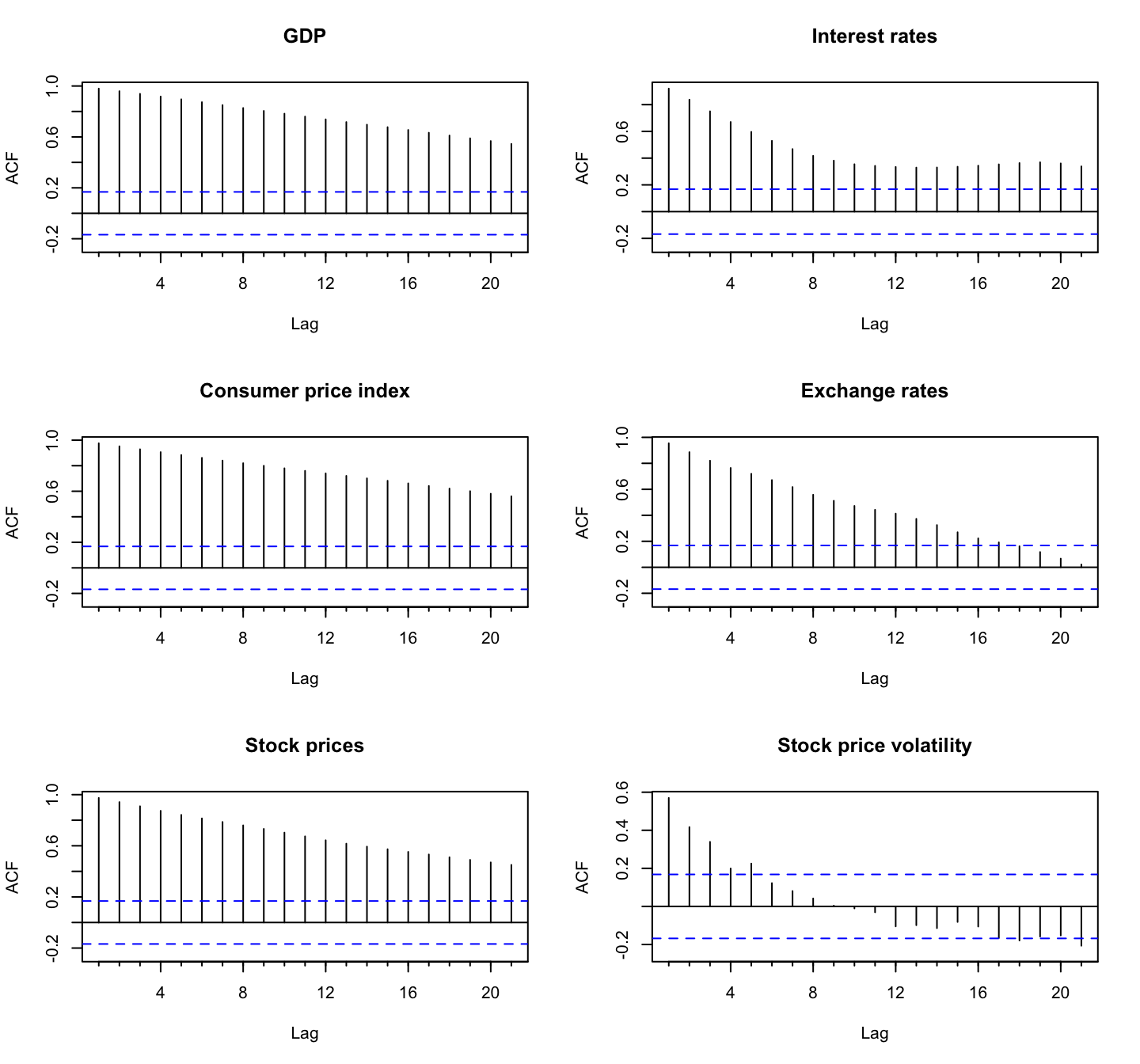

The autocorrelation function (ACF) plots in Figure 3 shows that all the variables except for stock price volatility have non-zero autocorrelation for at least 20 lags, implying that only stock price volatility is a stationary series and the other variables are highly persistent.

Figure 3: Plots of autocorrelation functions

The partial autocorrelation function (PACF) plots in Figure 4 shows that the partial autocorrelation for all the variables are significant at the first lag. The partial autocorrelation for exchange rates is also significant at 2.

Figure 4: Plots of partial autocorrelation functions

2.1.2 Unit Root Test

Augmented Dickey-Fuller Test

The augmented Dickey-Fuller test of the null hypothesis of unit root nonstationarity was performed to test the presence of the unit root.

Table 3 shows that the null hypothesis was not rejected at the 1% significance level for all the variables except for stock price volatility, implying that all the variables except for stock price volatility are nonstationary series. Stock price volatility is the log of bipower variation and took logarithmic scale twice.

Variable	Test statistic	Critical value	Stationarity
GDP	-1.284	-3.99	No
Interest rates	-2.991	-3.46	No
Consumer price index	-2.845	-3.99	No
Exchange rates	-2.181	-3.46	No
Stock prices	-3.186	-3.99	No
Stock price volatility	-4.543	-3.46	Yes

Table 3: Augmented Dickey-Fuller test results

Table 4 shows that the Augmented Dickey-Fuller test results on the first difference of the variables. We find that all the variables are unit root stationary at the 1% significance level, and conclude that all the variables except for stock price volatility are integrated of order one, \(I(1)\). Stock price volatility is stationary series and integrated of order zero, \(I(0)\).

Variable	Test statistic	Critical value	Stationarity
GDP	-5.225	-3.46	Yes
Interest rates	-5.574	-2.58	Yes
Consumer price index	-6.089	-3.46	Yes
Exchange rates	-7.589	-2.58	Yes
Stock prices	-6.905	-3.46	Yes
Stock price volatility	-8.322	-2.58	Yes

Table 4: Augmented Dickey-Fuller test results on the first difference

3. Methodology

3.1 Model Specification

This study uses a Bayesian Structural vector autoregression model to measure the dynamic and contemporaneous relationships between variables. The endogenous variables in the model are the following: \[ Y_t= \begin{bmatrix} gdp_t \\ICR_t \\cpi_t \\EXR_t \\stp_t \\vol_t \end{bmatrix} \] \(Y_t\) contains six variables ordered as

   (1) Real GDP, \(gdp_t\),
   (2) Interest rates, \(ICR_t\),
   (3) Consumer price index, \(cpi_t\),
   (4) Exchange rates from AUD to USD, \(EXR_t\),
   (5) Stock prices, \(stp_t\), and
   (6) Stock price volatility, \(vol_t\).

Structural Form

The Structural form model can be represented as follows: \[ \begin{gather} B_0y_t = b_0 + \sum_{i=1}^{p} B_iy_{t-i} + u_t \\ u_t|Y_{t-1} \sim _{iid} \mathcal{N}(0_N, I_N) \end{gather} \] where

   \(y_t\) is an \(N \times 1\) vector of endogenous variables at time \(t\),
   \(B_0\) is an \(N \times N\) structural matrix that captures contemporaneous relationships between variables,
   \(u_t\) is an \(N \times 1\) vector conditionally on \(Y_{t-1}\) orthogonal or independent structural shocks,
   \(N\) is the number of endogeneous variables, and \(p\) is the lag order.

To obtain a model in a form that uses the autoregressive parameters of the VAR model, we can premultiply the SVAR equation by \(B_0^{-1}\) and get: \[ \begin{align} y_t &= B_0^{-1}b_0 + \sum_{i=1}^{p}B_0^{-1}B_{i}y_{t-i} + B_0^{-1}u_t \end{align} \] It can be rewritten as follows: \[ \begin{align} y_t &= \mu_0 + \sum_{i=1}^{p}A_iy_{t-i} + Bu_t \\ \\ &u_t|Y_{t-1} \sim _{iid} \mathcal{N}(0_N, I_N) \end{align} \] where

   \(B = B_0^{-1}\) is a contemporaneous effect matrix that captures contemporaneous effects of shocks on variables \(y_t\),
   \(A_i = B_0^{-1}B_i\) is autoregressive slope coefficients, and
   \(\mu_0 = B_0^{-1}b_0\) is a constant term.

Reduced Form

Through the equivalence transformations, the Structural form model can be represented as the reduced form model as follows: \[ \begin{gather} y_t = \mu_0 + \sum_{i=1}^{p} A_iy_{t-i} + \epsilon_t \\ \epsilon_t|Y_{t-1} \sim _{iid} \mathcal{N}(0_N, \Sigma) \end{gather} \] where

   \(Y_t\) is an \(N \times 1\) vector of endogenous variables at time \(t\),
   \(A_i\) is an \(N \times N\) matrix of autoregressive slope parameters,
   \(\mu_0\) is an \(N \times 1\) vector of constant terms,
   \(\epsilon_t\) is an \(N \times 1\) vector of the multivariate white noise error terms, where \(\epsilon_t = Bu_t\),
   \(\Sigma\) is an \(N \times N\) covariance matrix of the error terms \(\epsilon_t\), where \(\Sigma = B_0^{-1} {B_0^{-1}}'\),
   \(N\) is the number of endogeneous variables, and \(p\) is the lag order.

The reduced form can be represented in a matrix form as follows: \[ \begin{gather} Y = XA + E \\ \\ E|X \sim \mathcal{MN}_{T \times N}(0_{T \times N},\Sigma_{N \times N},I_T) \end{gather} \]
\[ \begin{align} Y = \begin{bmatrix} y_{1}' \\y_{2}' \\. \\. \\. \\y_{T}' \end{bmatrix}_{T \times N} \quad A = \begin{bmatrix}\mu_{0}' \\A_{1}' \\.\\.\\.\\A_{p}' \end{bmatrix}_{K \times N} \quad x_t =\begin{bmatrix}\ 1 \\y_{t-1} \\.\\.\\.\\y_{t-p} \end{bmatrix}_{K \times 1} \quad X = \begin{bmatrix}\ x_{1}' \\x_{2}' \\.\\.\\.\\x_{T}' \end{bmatrix}_{T \times K} \quad E = \begin{bmatrix}\ \epsilon _{1}' \\\epsilon _{2}' \\.\\.\\.\\\epsilon _{T}' \end{bmatrix}_{T \times N} \end{align} \] where

   \(Y\) is a \(T \times N\) matrix of endogenous variables at time \(T\),
   \(A\) is a \(K \times N\) matrix of autoregressive slope parameters,
   \(X\) is a \(T \times N\) matrix of covariates,
   \(E\) is a \(T \times N\) matrix of the white noise error terms,
   \(\Sigma\) is an \(N \times N\) row-specific covariance matrix of error terms
   \(I_T\) is an \(T \times T\) identity matrix representing the column-specific covariance matrix of error,
   \(N\) is the number of endogeneous variables,
   \(T\) is the number of time periods,
   \(p\) is the lag order, and \(K = 1 + pN\).

3.2 Bayes’ theorem

For parameter estimation, the Bayes’ theorem is used to derive the joint posterior distribution.

The joint posterior distribution of \(A\) and \(\Sigma\) can be estimated as follows: \[ \begin{align} \underbrace{p(A,\Sigma|Y,X)}_{\text{Posterior}} &\propto L(A,\Sigma|Y,X) \cdot p(A,\Sigma) \\ &\propto \underbrace{L(A,\Sigma|Y,X)}_{\text{Likelihood function}} \cdot \underbrace{p(A|\Sigma) \cdot p(\Sigma)}_{\text{Prior}} \end{align} \]

3.3 Minnesota Prior

The Minnesota prior is a type of prior distribution that assumes that the variables are assumed to follow a random walk process. It imposes restrictions on the coefficients of the model by shrinking the coefficients on the lag of other variables more aggressively compared to the coefficients of their own lags, reflecting that a variable’s past values are more important predictors of its current value. The impact of past values on future values diminishes as lag p increases.

Using the Minnesota prior, we set the prior mean \(\underline{A}\) as the following: \[ \begin{align} \underline{A} = \begin{bmatrix} \mathbf{0}_{N \times 1} \\ I_N \\ \mathbf{0}_{N \times (p-1)N} \end{bmatrix} \end{align} \] where the prior covariance matrix is \[ \begin{align} Var[vec(A)] &= \Sigma \otimes \underline{V} \end{align} \] Column-specific prior covariance of \(A\) is defined as the following: \[ \begin{align} \underline{V} &= \text{diag}([\kappa_2 \quad \kappa_1 (\mathbf{p}^{-2} \otimes \imath'_N)]) \end{align} \] where \[ \begin{align} \mathbf{p} = [1,2, ..., p] \\ \imath_N = [1,...,1] \end{align} \]

   \(\kappa_1\) is overall shrinkage level of autoregressive slopes, and
   \(\kappa_2\) is overall shrinkage of the constant term.

Two shrinkage hyperparameters \(\kappa_1\) and \(\kappa_2\) controls the level of shrinkage/dispersion of the prior distribution around the prior mean \(\underline{A}\).

3.4 Identification

Sign restrictions are imposed to obtain the identification of the system, namely orthogonal shocks \(u_t\) and matrix \(B_0\). \[ \begin{align} y_t &= \mu_0 + \sum_{i=1}^{p}A_iy_{t-i} + Bu_t \\ \\ &u_t|Y_{t-1} \sim _{iid} \mathcal{N}(0_N, I_N) \end{align} \] \(B\) = \(B_0^{-1}\) is a contemporaneous effect matrix that captures contemporaneous effects of shocks on variables \(y_t\)

For each sample draws from the posterior distribution of \(A\), \(\Sigma\) from the reduced form, the contemporaneous effects matrix is derived as: \[ \tilde{B}=\tilde{B}^{-1}_0=\text{chol}(\Sigma) \] Contemporaneous effects matrix \(B\) is identified by searching for an appropriate rotation matrix \(Q\) such that prescribed sign restrictions hold: \[ B = Q\tilde{B} \] such that:

For \(n\) = 1, … , \(N\) check if \[ \textbf{R}_nf(\tilde{B}_0,\tilde{B}_+)e_n\ > \textbf{0}_{R \times 1} \] \(f({B}_0,{B}_+)\) – \(R \times N\) matrix of functions of parameters to be restricted, \(f({B}_0,{B}_+)\) = \(B_0'\) – restrictions on contemporaneous relationships f (B+, B0) = B 1 0\(B_1'\) – restrictions on contemporaneous effects \[ \begin{gather} f(\tilde{B}_0,\tilde{B}_+) = \begin{bmatrix} \Theta_0 \space \Theta_1 \end{bmatrix} = B = \tilde{B}^{-1}_0 \end{gather} \]

Table 5 shows the sign restrictions for the positive monetary policy shock.

	gdp	ICR	cpi	EXR	stp	vol
Monetary Policy Shock	-	+	-	+

Table 5: Sign restrictions

The following sign restrictions are imposed on on the variable interest rates. \[ f(B_0,B_+)=\Theta_0=B= \begin{bmatrix} * & - & * & * & * & * \\ * & + & * & * & * & * \\ * & - & * & * & * & * \\ * & + & * & * & * & * \\ * & * & * & * & * & * \\ * & * & * & * & * & * \\ \end{bmatrix} \] The restriction matrix R is as follows: \[ \textbf{R}_2=\begin{bmatrix} -1 & 0 & 0 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & -1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 \\ \end{bmatrix} \]

3.5 Impulse Response Function

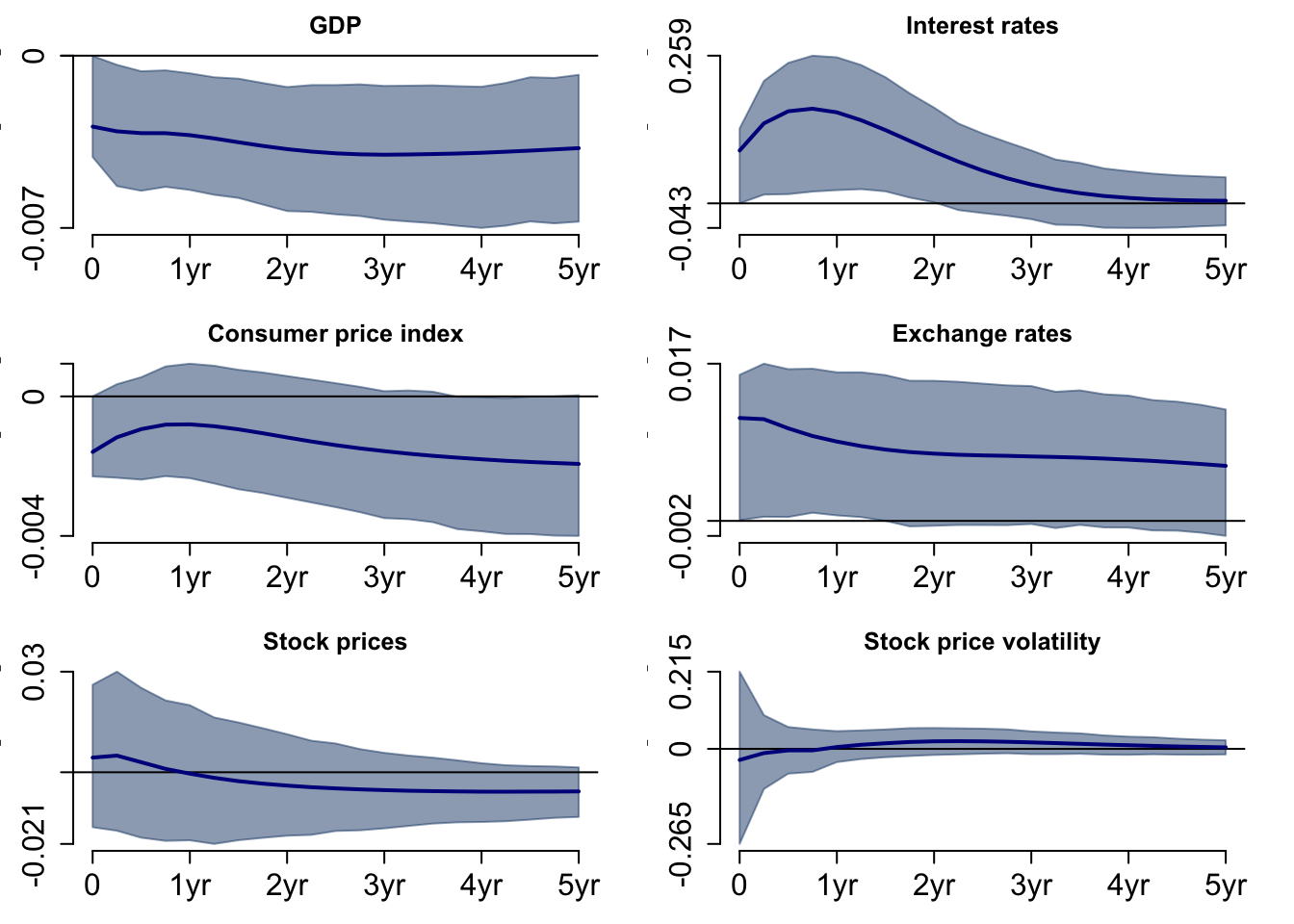

Impulse response functions to orthogonal shocks capture the dynamic causal effects of an exogenous shock on the endogenous variables in the model. To obtain the impulse response function from the reduced form \(VAR(p)\) model, a stationary Vector \(VAR(p)\) process should be rewritted in \(VMA(\infty)\) form. The \(VAR(1)\) representation of the reduced form \(VAR(p)\) model is the following: \[ \begin{align} Y_t &= \textbf{A}Y_{t-1}+E_t \\ &= E_t+\textbf{A}E_{t-1}+\textbf{A}^2E_{t-2}+ ... \end{align} \] Using the \(J\) matrix, transform a \(VAR(1)\) representation back to a \(VAR(p)\) representation. \[ J=\big[I_N\quad 0_{N\times N(p-1)}\big] \] Then, \[ \begin{align} y_t &= JY_t \\ &=JE_t+J\textbf{A}J'JE_{t-1}+J\textbf{A}^2J'JE_{t-2}+... \\ &=\epsilon_t+J\textbf{A}J'\varepsilon_{t-1}+J\textbf{A}^2J'\varepsilon_{t-2}+... \end{align} \] Substitute \(\epsilon_t\) to \(Bu_t\): \[ \begin{align} y_t &=Bu_t+J\textbf{A}J'Bu_{t-1}+J\textbf{A}^2J'Bu_{t-2}+... \\ &=\Theta_0u_t+\Theta_1u_{t-1}+\Theta_2u_{t-2}+... \end{align} \] Differenciate to obtain matrices \(\Theta_i\): \[ \begin{align} \frac{\partial y_{t+i}}{\partial u_t} = \Theta_i = J\textbf{A}^iJ'B \end{align} \] where matrices \(\Theta_i\) identify the impulse response functions, which represent responses of all variables in \(Y_t\) to orthogonal shocks, \(i\) periods after shock’s occurence.

4. Estimation Framework

4.1 Standard Bayesian SVAR Model

4.1.1 Model Specification

The reduced form representation in a matrix form is as follows: \[ \begin{gather} Y = XA + E \\ \\ E|X \sim \mathcal{MN}_{T \times N}(0_{T \times N},\Sigma,I_T) \\ \end{gather} \]

4.1.2 Estimation Procedure

For estimation, the Bayes’ theorem is used to derive the joint posterior distribution for \(A\) and \(\Sigma\). \[ \begin{align} \underbrace{p(A,\Sigma|Y,X)}_{\text{Posterior}} &\propto L(A,\Sigma|Y,X) \cdot p(A,\Sigma) \\ &\propto \underbrace{L(A,\Sigma|Y,X)}_{\text{Likelihood function}} \cdot \underbrace{p(A|\Sigma) \cdot p(\Sigma)}_{\text{Prior}} \end{align} \] The model specification implies the following form for the kernel of the likelihood function: \[ \begin{align} L(A,\Sigma|Y,X) &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \exp \left\{-\frac{1}{2} tr \left[\Sigma^{-1}(Y-XA)'(Y-XA) \right] \right\} \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \\ &\quad\times \exp \left\{-\frac{1}{2} tr \left[\Sigma^{-1}(A-\hat{A})'X'X(A-\hat{A}) \right] \right\} \\ &\quad\times \exp \left\{-\frac{1}{2} tr \left[\Sigma^{-1}(Y-X \hat{A})'(Y-X \hat{A}) \right] \right\} \end{align} \] where \[ \begin{align} \hat{A} &= (X'X)^{-1}X'Y \\ \hat{\Sigma} &= \frac{1}{T} (Y-X \hat{A})'(Y-X \hat{A}) \end{align} \] are from the maximum likelihood estimation.

The natural-conjugate prior distribution where \(A\) is matrix normal and \(\Sigma\) follows inverse Wishart distribution has the same form as the joint posterior distribution for \(A\) and \(\Sigma\). \[ \begin{gather} p(A,\Sigma) = p(A|\Sigma) \cdot p(\Sigma) \\ \\ A|\Sigma \sim \mathcal{MN}_{K \times N}(\underline{A},\Sigma,\underline{V}) \\ \Sigma \sim \mathcal{IW}_N(\underline{S},\underline{\nu}) \end{gather} \] This implies the following form for the kernel of the natural-conjugate prior distribution: \[ \begin{align} p(A,\Sigma) &= p(A|\Sigma) \cdot p(\Sigma) \\ \\ &\propto \det(\Sigma)^{-\frac{N+K+\underline{v}+1}{2}} \\ &\quad\times \exp \left\{-\frac{1}{2}tr \left[\Sigma^{-1}(A-\underline{A})'\underline{V}^{-1}(A-\underline{A}) \right] \right\} \\ &\quad\times \exp \left\{-\frac{1}{2}tr \left[\Sigma^{-1}\underline{S} \right] \right\} \end{align} \]

The conditional posterior distribution is given by the product of the likelihood function and the prior distribution. \[ \begin{align} p(A,\Sigma|Y,X) &\propto L(A,\Sigma|Y,X) \cdot p(A,\Sigma) \\ \\ &\propto L(A,\Sigma|Y,X) \cdot p(A|\Sigma) \cdot p(\Sigma) \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \exp \left\{-\frac{1}{2} tr \left[ \Sigma^{-1}(Y-XA)'(Y-XA) \right] \right\} \\ &\quad\times \det(\Sigma)^{-\frac{N+K+\underline{v}+1}{2}} \cdot \exp\left\{-\frac{1}{2}tr[\Sigma^{-1}(A-\underline{A})'\underline{V}^{-1}(A-\underline{A})] \right\} \cdot \exp\left\{-\frac{1}{2}tr[\Sigma^{-1}\underline{S}] \right\} \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \exp \left\{-\frac{1}{2} tr \left[ \Sigma^{-1}(A-\hat{A})'X'X(A-\hat{A}) \right] \right\} \cdot \exp \left\{-\frac{1}{2} tr \left[\Sigma^{-1}(Y-X \hat{A})'(Y-X \hat{A}) \right] \right\} \\ &\quad\times \det(\Sigma)^{-\frac{N+K+\underline{v}+1}{2}} \cdot \exp\left\{-\frac{1}{2}tr[\Sigma^{-1}(A-\underline{A})'\underline{V}^{-1}(A-\underline{A})] \right\} \cdot \exp\left\{-\frac{1}{2}tr[\Sigma^{-1}\underline{S}] \right\} \\ \\ &\propto \det{(\Sigma)}^{-\frac{T+N+K+\underline{\nu}+1}{2}} \\ &\quad\times \exp \left\{-\frac{1}{2} tr \left[\Sigma^{-1} \left[(A-\hat{A})'X'X(A-\hat{A})+(A-\underline{A})'\underline{V}^{-1}(A-\underline{A})+(Y-X\hat{A})'(Y-X\hat{A})+\underline{S} \right] \right] \right\} \\ \\ &\propto \det{(\Sigma)}^{-\frac{T+N+K+\underline{\nu}+1}{2}} \\ &\quad\times \exp \left\{ -\frac{1}{2} tr \left[\Sigma^{-1}\left[(A-\overline{A})'\overline{V}^{-1} (A-\overline{A})+\underline{S}+Y'Y+\underline{A}'\underline{V}^{-1}\underline{A}-\overline{A}'\overline{V}^{-1} \overline{A} \right] \right] \right\} \end{align} \] Combining the terms yields the following the joint posterior distributions for \(A\) and \(\Sigma\): \[ \begin{gather} p(A,\Sigma|Y,X) = p(A|Y,X,\Sigma) \cdot p(\Sigma|Y,X) = \mathcal{MNIW}_{K \times N}(\overline{A}, \overline{V}, \overline{S}, \overline{\nu}) \\ \\ p(A|Y,X,\Sigma) = \mathcal{MN}_{K \times N}(\overline{A}, \Sigma, \overline{V}) \\ \\ p(\Sigma|Y,X) = \mathcal{IW}_N(\overline{S},\overline{\nu}) \\ \end{gather} \] where the parameters of the joint posterior distribution are the following: \[ \begin{align} \overline{V} &= (X'X + \underline{V}^{-1})^{-1} \\ \overline{A} &= \overline{V}(X'Y + \underline{V}^{-1}\underline{A}) \\ \overline{S} &= \underline{S} + Y'Y + \underline{A}'\underline{V}^{-1}\underline{A} - \overline{A}'\overline{V}^{-1}\overline{A} \\ \overline{\nu} &= T + \underline{\nu} \end{align} \]

4.1.3 Algorithm Validation

To check the validity of the algorithms, two independent bi-variate Gaussian random walk processes with 1,000 observations were generated to simulate unit-root non-stationary macroeconomic variables.

The bi-variate Gaussian random walk process is represented as follows: \[ y_t = \begin{bmatrix} y_{t,1} \\ y_{t,2} \end{bmatrix} = \begin{bmatrix} y_{t-1,1} \\ y_{t-1,2} \end{bmatrix} + \begin{bmatrix} \epsilon_{t,1} \\ \epsilon_{t,2} \end{bmatrix} \] where both \(\epsilon_{t,1}\) and \(\epsilon_{t,2}\) have mean of zero and variance of one. \[ \begin{align} \epsilon_{t,1} \sim \mathcal{N}(0,1) \\ \epsilon_{t,2} \sim \mathcal{N}(0,1) \end{align} \]

The plot below shows the bi-variate Gaussian random walk process.

Figure 5: Plot of Gaussian Random Walk Process

Gibbs Sampler

Using the parameter of the joint posterior distribution \(\overline{A}\), \(\overline{V}\),\(\overline{S}\), \(\overline{\nu}\) computed in the section 4.1.2, we obtain a sample of \(S\) draws from the posterior distribution.

At each iteration \(s\) where \(s\) goes from 1 to \(S\),

1. Draw \(\Sigma^{(s)} \sim P(\Sigma|Y,X)\) from the \(\mathcal{IW}_N(\overline{S},\overline{\nu})\) distribution.
2. Draw \(A^{(s)} \sim P(A|Y,X,\Sigma^{(s)})\) from the \(\mathcal{MN}_{K \times N}(\overline{A},\Sigma^{(s)}, \overline{V})\) distribution using the draw \(\Sigma^{(s)}\).

Output is the sample draws from the joint posterior distribution \(\left\{ {A^{(s)}, \Sigma^{(s)}}\right\}^{S}_{s=1}\).

The prior.draw function below computes prior distribution.

prior.draw <- function(N, p) {

  # Calculate the MLE
  # ----------------------------------------------------------
  A.hat       <- solve(t(X)%*%X)%*%t(X)%*%Y
  Sigma.hat   <- t(Y-X%*%A.hat)%*%(Y-X%*%A.hat)/nrow(Y)

  # Prior distribution
  ############################################################
  # Specify the prior distribution parameters
  # ----------------------------------------------------------
  kappa.1     <- 1
  kappa.2     <- 100

  A.prior     <- matrix(0, nrow(A.hat), ncol(A.hat))
  A.prior[2:(N+1),] <- diag(N)
  V.prior     <- diag(c(kappa.2, kappa.1*((1:p)^(-2))%x%rep(1,N)))
  S.prior     <- diag(diag(Sigma.hat))
  nu.prior    <- N+1

  return (list(A.prior = A.prior,
               V.prior = V.prior,
               S.prior = S.prior,
               nu.prior = nu.prior))
}

The function baseline.posterior below computes posterior distribution of the standard model.

baseline.posterior <- function(X, Y, N, p, S, prior.distribution) {

  # Prior distribution parameters
  # ----------------------------------------------------------
  A.prior  <- prior.distribution$A.prior
  V.prior  <- prior.distribution$V.prior
  S.prior  <- prior.distribution$S.prior
  nu.prior <- prior.distribution$nu.prior

  # Posterior distribution
  ############################################################
  # Specify the matrix normal-inverse Wishart posterior parameters
  # ----------------------------------------------------------
  V.bar.inv   <- t(X)%*%X + diag(1/diag(V.prior))
  V.bar       <- solve(V.bar.inv)
  A.bar       <- V.bar%*%(t(X)%*%Y + diag(1/diag(V.prior))%*%A.prior)
  nu.bar      <- nrow(Y) + nu.prior
  S.bar       <- S.prior + t(Y)%*%Y + t(A.prior)%*%diag(1/diag(V.prior))%*%A.prior - t(A.bar)%*%V.bar.inv%*%A.bar
  S.bar.inv   <- solve(S.bar)

  # Draw Posterior parameters
  # ----------------------------------------------------------
  ## Draw from the Reduced Form
  ### Draw Sigma from the inverse Wishart distribution
  Sigma.posterior   <- rWishart(S, df=nu.bar, Sigma=S.bar.inv)
  Sigma.posterior   <- apply(Sigma.posterior, 3, solve)

  # Initialise arrays to store posterior draws
  # ----------------------------------------------------------
  Sigma.posterior   <- array(Sigma.posterior, c(N,N,S))
  A.posterior       <- array(rnorm(prod(c(dim(A.bar), S))), c(dim(A.bar), S))
  B0.posterior      <- array(NA, c(N,N,S))
  B1.posterior      <- array(NA, c(N,K,S))

  for (s in 1:S){

    ## Draw from the Structural Form
    ### Draw B0
    cholSigma.s        <- chol(Sigma.posterior[,,s])
    L                  <- t(chol(V.bar))
    B0.posterior[,,s]  <- solve(t(cholSigma.s))
    A.posterior[,,s]   <- A.bar + L%*%A.posterior[,,s]%*%cholSigma.s

    ### Draw Bplus
    B1.posterior[,,s]  <- B0.posterior[,,s]%*%t(A.posterior[,,s])
    }

  return(list(Sigma.posterior = Sigma.posterior,
              A.posterior = A.posterior,
              B0.posterior = B0.posterior,
              B1.posterior = B1.posterior))
}

The RW.identification function below imposes sign restrictions on the random walk process.

RW.identification <- function (N, p, S, sign.restrictions, posterior.distribution){

  # Posterior distribution parameters
  # ----------------------------------------------------------
  Sigma.posterior <- posterior.distribution$Sigma.posterior
  A.posterior  <- posterior.distribution$A.posterior
  B0.posterior <- posterior.distribution$B0.posterior
  B1.posterior <- posterior.distribution$B1.posterior

  # Initialise arrays to store Q identified estimates
  # ----------------------------------------------------------
  i.vec <- c()
  Q.store      <- array(NA, c(N,N,S))
  B0.store     <- array(NA, c(N,N,S))
  B1.store     <- array(NA, c(N,K,S))

  # Identification via sign restrictions
  ############################################################
  # Generate R matrix
  R <- diag(sign.restrictions)

  for (s in 1:S){
    B0.tilde      <- B0.posterior[,,s]
    B1.tilde      <- B1.posterior[,,s]

    sign.restrictions.do.not.hold = TRUE
    i=1
    while (sign.restrictions.do.not.hold){
      X           <- matrix(rnorm(N*N), N, N)
      QR          <- qr(X, tol=1e-10)
      Q           <- qr.Q(QR, complete=TRUE)
      R           <- qr.R(QR, complete=TRUE)
      Q           <- t(Q%*%diag(sign(diag(R))))
      B0          <- Q%*%B0.tilde
      B1          <- Q%*%B1.tilde
      B0.inv      <- solve(B0)
      check       <- all(B0[1,1]>0, B0[2,2]>0)

      if (check){sign.restrictions.do.not.hold = FALSE}
      i=i+1
      }

    i.vec <- c(i.vec, i)
    Q.store[,,s]   <- Q
    B0.store[,,s]  <- B0
    B1.store[,,s]  <- B1
    }

  return(list(B0.store = B0.store,
              B1.store = B1.store))
  }

The results below show the mean of the matrices \(B_0\) and \(B_+\).

Mean of the \(B_0\) Matrix

0.6396	-0.0220
0.0402	0.6468

Mean of the \(B_+\) Matrix

0.0354	0.6353	-0.0211
0.0148	0.0448	0.6432

The results below show the mean of the matrices \(A\) and \(\Sigma\).

Mean of the \(A\) posterior

	y1	y2
constant	0.0549	0.0176
lag of y1	0.9937	0.0076
lag of y2	0.0010	0.9944

Mean of the \(\Sigma\) posterior

	y1	y2
y1	0.9635	-0.0115
y2	-0.0115	0.9413

4.2 Bayesian SVAR Model with t-distributed Errors

4.2.1 Model Specification

To relax the normality assumption in the error terms, we assumed error terms to be t-distributed. The stock price is responsive to unanticipated events, which causes fluctuation in price and volatility. The large gains and losses observed in stocks can be addressed in leptokurtic distribution, and t-distribution is a good candidate for our model of stock price volatility.

The reduced form representation in a matrix form is as follows: \[ \begin{gather} Y = XA + E \\ \\ E|X, \lambda \sim \mathcal{MN}_{T \times N}(0_{T \times N},\Sigma,\lambda I_T) \end{gather} \] where the column-specific covariance matrix of error terms is set to be \(\lambda I_T\).

The parameter lambda is inverse gamma 2 distributed with scale parameter \(s_{\lambda}\) and shape parameter \(\nu_{\lambda}\). We assume fixed numbers for \(s_{\lambda}\) and \(\nu_{\lambda}\) in this study. \[ \lambda \sim \mathcal{IG}2(s_{\lambda}, \nu_{\lambda}) \] Then it follows multivariate t-distribution: \[ \begin{gather} E|X \sim t_N(0, \Sigma,\nu) \end{gather} \]

4.2.2 Estimation Procedure

Using the Bayes’ theorem, the joint posterior distribution for \(A\) and \(\Sigma\) is the following: \[ \begin{align} \underbrace{p(A,\Sigma|Y,X,\lambda)}_{\text{Posterior}} &\propto L(A,\Sigma|Y,X,\lambda) \cdot p(A,\Sigma) \\ &\propto \underbrace{L(A,\Sigma|Y,X,\lambda)}_{\text{Likelihood function}} \cdot \underbrace{p(A|\Sigma) \cdot p(\Sigma)}_{\text{Prior}} \end{align} \] The kernel of the likelihood function follows as: \[ \begin{align} L(A,\Sigma|Y,X,\lambda) &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\lambda I_T)^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2} \text{tr} \left[\Sigma^{-1}(Y-XA)'(\lambda I_T)^{-1}(Y-XA) \right] \right\} \end{align} \] The natural-conjugate prior distribution where \(A\) follows matrix normal, \(\Sigma\) follows inverse Wishart and \(\lambda\) follows inverse gamma 2 distribution, have the same form as the joint posterior distribution for \(A\), \(\Sigma\), and \(\lambda\). \[ \begin{gather} p(A,\Sigma, \lambda) = p(A|\Sigma) \cdot p(\Sigma) \cdot p(\lambda)\\ \\ A|\Sigma \sim \mathcal{MN}_{K \times N}(\underline{A},\Sigma,\underline{V}) \\ \Sigma \sim \mathcal{IW}_N(\underline{S},\underline{\nu}) \\ \lambda \sim \mathcal{IG}2(\underline{s_{\lambda}}, \underline{\nu_{\lambda}}) \end{gather} \] This implies the following form for the kernel of the natural-conjugate prior distribution: \[ \begin{align} p(A,\Sigma, \lambda) &= p(A|\Sigma) \cdot p(\Sigma) \cdot p(\lambda) \\ \\ &\propto \det(\Sigma)^{-\frac{N+k+\underline{\nu}+1}{2}} \cdot \exp \left\{-\frac{1}{2}tr[\Sigma^{-1}(A-\underline{A})'\underline{V}^{-1}(A-\underline{A})] \right\} \cdot \exp \left\{ -\frac{1}{2}tr[\Sigma^{-1}\underline{S}] \right\} \\ &\quad\times \lambda^{-\frac{\underline{\nu_{\lambda}}+2}{2}} \cdot \exp \left\{-\frac{1}{2}\frac{\underline{s_{\lambda}}}{\lambda} \right\} \end{align} \] The conditional posterior distribution of \(A\) and \(\Sigma\) is given by the product of the likelihood function and the prior distribution: \[ \begin{align} p(A,\Sigma|Y,X,\lambda) &\propto L(A,\Sigma|Y,X,\lambda) \cdot p(A,\Sigma) \\ \\ &\propto L(A,\Sigma|Y,X,\lambda) \cdot p(A|\Sigma) \cdot p(\Sigma) \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\lambda I_T)^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2} tr[\Sigma^{-1} (Y-XA)' (\lambda I_T)^{-1} (Y-XA) ] \right\} \\ &\quad\times \det(\Sigma)^{-\frac{N+k+\underline{\nu}+1}{2}} \cdot \exp \left\{-\frac{1}{2}tr[\Sigma^{-1}(A-\underline{A})'\underline{V}^{-1}(A-\underline{A})] \right\} \cdot \exp \left\{ -\frac{1}{2}tr[\Sigma^{-1}\underline{S}] \right\} \\ \\ &\propto \det(\Sigma)^{-\frac{T+N+K+\underline{\nu}+1}{2}} \cdot \det(\lambda I_T)^{-\frac{N}{2}} \\ &\quad\times \exp \left\{-\frac{1}{2} tr[\Sigma^{-1}(Y'(\lambda I_T)^{-1}Y - 2A'X'(\lambda I_T)^{-1}Y + A'X'(\lambda I_T)^{-1}XA + A'\underline{V}^{-1}A -2A'\underline{V}^{-1}\underline{A} + \underline{A}'\underline{V}^{-1}\underline{A} + \underline{S})] \right\} \end{align} \] Then, the joint posterior distribution of \(A\) and \(\Sigma\) is derived as: \[ \begin{gather} p(A,\Sigma|Y,X,\lambda) = p(A|Y,X,\Sigma, \lambda) \cdot p(\Sigma|Y,X,\lambda) = \mathcal{MNIW}_{K \times N}(\overline{A}, \overline{V}, \overline{S}, \overline{\nu}) \\ \\ p(A|Y,X,\Sigma,\lambda) = \mathcal{MN}_{K \times N}(\overline{A}, \Sigma, \overline{V}) \\ \\ p(\Sigma|Y,X,\lambda) = \mathcal{IW}_N(\overline{S},\overline{\nu}) \\ \end{gather} \] where the parameters of the joint posterior distribution are the following: \[ \begin{align} \overline{V} &= [X'(\lambda I_T)^{-1}X + \underline{V}^{-1}]^{-1} \\ \overline{A} &= \overline{V}[X'(\lambda I_T)^{-1}Y + \underline{V}^{-1}\underline{A}] \\ \overline{S} &= Y'(\lambda I_T)^{-1}Y + \underline{A}'\underline{V}^{-1}\underline{A} - \overline{A}'\overline{V}^{-1}\overline{A} + \underline{S} \\ \overline{\nu} &= \underline{\nu} + T \end{align} \] The conditional posterior distribution of \(\lambda\) is derived as follows: \[ \begin{align} p(\lambda|Y,X,A,\Sigma) &\propto L(A,\Sigma|Y,X,\lambda) \cdot p(\lambda) \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\lambda I_T)^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2} tr[\Sigma^{-1} (Y-XA)' (\lambda I_T)^{-1} (Y-XA)] \right\} \\ &\quad\times \lambda^{-\frac{\underline{\nu_{\lambda}}+2}{2}} \cdot \exp \left\{-\frac{1}{2}\frac{\underline{s_{\lambda}}}{\lambda} \right\} \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(I_T)^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2}\frac{1}{\lambda} tr[\Sigma^{-1}(Y-XA)'(Y-XA)] \right\} \\ &\quad\times \lambda^{-\frac{TN}{2}} \cdot \lambda^{-\frac{\underline{\nu_{\lambda}}+2}{2}} \cdot \exp \left\{-\frac{1}{2}\frac{\underline{s_{\lambda}}}{\lambda} \right\} \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(I_T)^{-\frac{N}{2}} \cdot \lambda^{-\frac{TN+\underline{\nu_{\lambda}}+2}{2}} \cdot \exp \left\{-\frac{1}{2}\frac{1}{\lambda} [tr(\Sigma^{-1}(Y-XA)'(Y-XA)) + \underline{s_{\lambda}}] \right\} \end{align} \] where the posterior distribution of \(\lambda\) is inverse gamma 2 distribution: \[ \begin{align} p(\lambda|Y,X, A,\Sigma) = \mathcal{IG}2(\overline{s_{\lambda}},\overline{\nu_{\lambda}}) \end{align} \] and the parameters of the posterior distribution is: \[ \begin{align} \overline{s_{\lambda}} &= tr[\Sigma^{-1}(Y-XA)'(Y-XA)] + \underline{s_{\lambda}} \\ \overline{\nu_{\lambda}} &= \underline{\nu_{\lambda}} + TN \end{align} \]

4.2.3 Algorithm Validation

To check the validity of the algorithms, two independent bi-variate Gaussian random walk processes with 1,000 observations were generated to simulate unit-root non-stationary macroeconomic variables.

Gibbs Sampler

Using the parameter of the joint posterior distribution \(\overline{A}\), \(\overline{V}\),\(\overline{S}\), \(\overline{\nu}\) in the section 4.2.2, we obtain a sample of \(S\) draws from the posterior distribution.

Initialise \(\lambda\) at \(\lambda^{(0)}\).

At each iteration \(s\) where \(s\) goes from 1 to \(S\),

1. Draw \(\Sigma^{(s)} \sim P(\Sigma|Y,X,\lambda^{(s-1)})\) from the \(\mathcal{IW}_N(\overline{S},\overline{\nu})\) distribution using \(\lambda^{(s-1)}\). For \(s\) = 1, use the initialised value \(\lambda^{(0)}\).
2. Draw \(A^{(s)} \sim P(A|Y,X,\Sigma^{(s)},\lambda^{(s-1)})\) from the \(\mathcal{MN}_{K \times N}(\overline{A},\Sigma^{(s)}, \overline{V})\) distribution using the draws \(\Sigma^{(s)}\) and \(\lambda^{(s-1)}\).
3. Draw \(\lambda^{(s)} \sim P(\lambda|Y,X,A^{(s)},\Sigma^{(s)})\) from \(\mathcal{IG}2(\overline{S_{\lambda}},\overline{\nu_{\lambda}})\) distribution using the draws \(A^{(s)}\) and \(\Sigma^{(s)}\).

Output is the sample draws from the joint posterior distribution \(\left\{ {A^{(s)}, \Sigma^{(s)}} ,\lambda^{(s)}\right\}^{S}_{s=1}\).

Applying same method as 4.1.3, except for applying the function extended.posterior below to compute posterior distribution for t-distributed error model.

extended.posterior <- function(X, Y, N, p, S, prior.distribution) {

  # Prior distribution parameters
  # ----------------------------------------------------------
  A.prior  <- prior.distribution$A.prior
  V.prior  <- prior.distribution$V.prior
  S.prior  <- prior.distribution$S.prior
  nu.prior <- prior.distribution$nu.prior
  s.prior.lambda   <- 5    # assume that it is fixed
  nu.prior.lambda  <- 5    # assume that it is fixed
  lambda   <- s.prior.lambda/rchisq(1, nu.prior.lambda)

  # Initialise arrays to store posterior draws
  # ----------------------------------------------------------
  Sigma.posterior   <- array(NA, c(N,N,S))
  A.posterior       <- array(NA, c(K,N,S))
  lambda.posterior  <- rep(NA, S)
  B0.posterior      <- array(NA, c(N,N,S))
  B1.posterior      <- array(NA, c(N,K,S))

  for (s in 1:S){

    # Posterior distribution
    ############################################################
    # Specify the matrix normal-inverse Wishart posterior parameters
    # ----------------------------------------------------------
    V.bar.inv   <- t(X)%*%X/lambda + diag(1/diag(V.prior))
    V.bar       <- solve(V.bar.inv)
    A.bar       <- V.bar%*%(t(X)%*%Y/lambda + diag(1/diag(V.prior))%*%A.prior)
    nu.bar      <- nrow(Y) + nu.prior
    S.bar       <- S.prior + t(Y)%*%Y/lambda + t(A.prior)%*%diag(1/diag(V.prior))%*%A.prior - t(A.bar)%*%V.bar.inv%*%A.bar
    S.bar.inv   <- solve(S.bar)

    # Draw Posterior parameters
    # ----------------------------------------------------------
    ## Draw from the Reduced Form
    ### Draw Sigma from the inverse Wishart distribution
    Sigma.posterior.inv   <- rWishart(1, df=nu.bar, Sigma=S.bar.inv)[,,1]
    Sigma.posterior[,,s]  <- solve(Sigma.posterior.inv)

    ### Draw A from matrix-variate normal distribution
    A.posterior[,,s]      <- matrix(mvtnorm::rmvnorm(1, mean=as.vector(A.bar), sigma=Sigma.posterior[,,s]%x%V.bar), ncol=N)

    ### Draw lambda from inverse gamma 2 distribution
    s.posterior.lambda    <- sum(diag(Sigma.posterior.inv%*%t(Y-X%*%A.posterior[,,s])%*%(Y-X%*%A.posterior[,,s]))) + s.prior.lambda
    nu.posterior.lambda   <- nrow(Y)*ncol(Y) + nu.prior.lambda
    lambda   <- s.posterior.lambda/rchisq(1, nu.posterior.lambda)
    lambda.posterior[s]   <- lambda

    ## Draw from the Structural Form
    ### Draw B0
    cholSigma.s           <- chol(Sigma.posterior[,,s])
    B0.posterior[,,s]     <- solve(t(cholSigma.s))

    ### Draw Bplus
    B1.posterior[,,s]     <- B0.posterior[,,s]%*%t(A.posterior[,,s])
  }

 return(list(Sigma.posterior = Sigma.posterior,
             A.posterior = A.posterior,
             lambda.posterior = lambda.posterior,
             B0.posterior = B0.posterior,
             B1.posterior = B1.posterior))
 }

The results below show the mean of the matrices \(B_0\) and \(B_+\).

Mean of \(B_0\) Matrix

0.9095	0.0106
0.0108	0.9206

Mean of \(B_+\) Matrix

0.0477	0.9040	0.0115
0.0169	0.0176	0.9156

The results below show the mean of the matrices \(A\) and \(\Sigma\).

Mean of the \(A\) posterior

	y1	y2
constant	0.0518	0.0156
lag of y1	0.9940	0.0076
lag of y2	0.0010	0.9946

Mean of the \(\Sigma\) posterior

	y1	y2
y1	0.5588	-0.0062
y2	-0.0062	0.5462

The lambda value below verifies that the main diagonal of sigma is equal to 1 if multiply it with lambda.

Mean of the \(\lambda\) posterior

lambda
2.012

4.3 Bayesian SVAR Model with Stochastic Volatility

4.3.1 Model Specification

The reduced form representation in a matrix form is as follows: \[ \begin{gather} Y = XA + E \\ \\ E|X \sim \mathcal{MN}_{T \times N}(0_{T \times N},\Sigma,\text{diag}(\sigma^2)) \end{gather} \] where the column-specific covariance matrix of error terms is set to be \(\text{diag}(\sigma^2)\).

The parameter \(\sigma^2\) is a vector of conditional heteroskedasticity variable. \[ \begin{gather} \sigma^2 = [\exp(h_1), \space...,\space \exp(h_T)]' \end{gather} \] where \(h_T\) follows a stochastic volatility process.

4.3.2 Estimation Procedure

Then we have the likelihood function as: \[ \begin{gather} L(A,\Sigma|Y,X,\sigma^2) \propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\text{diag}(\sigma^2))^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2} tr \left[ \Sigma^{-1}(Y-XA)'\text{diag}(\sigma^2)^{-1}(Y-XA) \right] \right\} \\ \end{gather} \]

The conditional posterior distribution of \(A\) and \(\Sigma\) is given by the product of the likelihood function and the prior distribution. \[ \begin{align} p(A,\Sigma|Y,X,\sigma^2) &\propto L(A,\Sigma|Y,X,\sigma^2) \cdot p(A,\Sigma) \\ \\ &\propto L(A,\Sigma|Y,X,\sigma^2) \cdot p(A|\Sigma) \cdot p(\Sigma) \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\text{diag}(\sigma^2))^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2} tr \left[ \Sigma^{-1}(Y-XA)'\text{diag}(\sigma^2)^{-1}(Y-XA) \right] \right\} \\ &\quad\times \det(\Sigma)^{-\frac{N+K+\underline{v}+1}{2}} \cdot \exp\left\{-\frac{1}{2}tr[\Sigma^{-1}(A-\underline{A})'\underline{V}^{-1}(A-\underline{A})] \right\} \cdot \exp\left\{-\frac{1}{2}tr[\Sigma^{-1}\underline{S}] \right\} \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\text{diag}(\sigma^2))^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2} tr \left[ \Sigma^{-1}(A-\hat{A})'X'\text{diag}(\sigma^2)^{-1}X(A-\hat{A}) \right] \right\} \cdot \exp \left\{-\frac{1}{2} tr \left[\Sigma^{-1}(Y-X \hat{A})'\text{diag}(\sigma^2)^{-1}(Y-X \hat{A}) \right] \right\} \\ &\quad\times \det(\Sigma)^{-\frac{N+K+\underline{v}+1}{2}} \cdot \exp\left\{-\frac{1}{2}tr[\Sigma^{-1}(A-\underline{A})'\underline{V}^{-1}(A-\underline{A})] \right\} \cdot \exp\left\{-\frac{1}{2}tr[\Sigma^{-1}\underline{S}] \right\} \\ \\ &\propto \det{(\Sigma)}^{-\frac{T+N+K+\underline{\nu}+1}{2}} \cdot \det(\text{diag}(\sigma^2))^{-\frac{N}{2}} \\ &\quad\times \exp \left\{-\frac{1}{2} tr \left[\Sigma^{-1} \left[(A-\hat{A})'X'\text{diag}(\sigma^2)^{-1}X(A-\hat{A})+(A-\underline{A})'\underline{V}^{-1}(A-\underline{A})+(Y-X\hat{A})'\text{diag}(\sigma^2)^{-1}(Y-X\hat{A})+\underline{S} \right] \right] \right\} \\ \\ &\propto \det(\Sigma)^{-\frac{T+N+K+\underline{\nu}+1}{2}} \cdot \det(\text{diag}(\sigma^2))^{-\frac{N}{2}} \\ &\quad\times \exp \left\{-\frac{1}{2} tr[\Sigma^{-1}(Y'\text{diag}(\sigma^2)^{-1}Y - 2A'X'\text{diag}(\sigma^2)^{-1}Y + A'X'\text{diag}(\sigma^2)^{-1}XA + A'\underline{V}^{-1}A -2A'\underline{V}^{-1}\underline{A} + \underline{A}'\underline{V}^{-1}\underline{A} + \underline{S})] \right\} \end{align} \]

The full conditional posterior of \((A,\Sigma)\) would follow a \(MNIW(\bar{A},\bar{V},\bar{S},\bar{\nu})\) distribution. \[ \begin{gather} p(A,\Sigma|X,Y,\sigma^2) \propto L(A,\Sigma|Y,X,\sigma^2) \times p(A|\Sigma) \times p(\Sigma) \end{gather} \] with parameters: \[ \begin{align} \overline{V} &= (X'\text{diag}(\sigma^2)^{-1}X + \underline{V}^{-1})^{-1} \\ \overline{A} &= \overline{V}(X'\text{diag}(\sigma^2)^{-1}Y + \underline{V}^{-1}\underline{A}) \\ \overline{S} &= \underline{S} + Y'\text{diag}(\sigma^2)^{-1}Y + \underline{A}'\underline{V}^{-1}\underline{A} - \overline{A}'\overline{V}^{-1}\overline{A} \\ \overline{\nu} &= \underline{\nu} + T \end{align} \]

4.3.3 Algorithm Validation

Gibbs Sampler

The function SVcommon.Gibbs.iteration below computes Gibbs sampler for the stochastic volatility.

SVcommon.Gibbs.iteration <- function(aux, priors) {
  # A single iteration of the Gibbs sampler for the SV component
  #
  # aux is a list containing:
  #   Y        - a TxN matrix
  #   X        - a TxK matrix
  #   H        - a Tx1 matrix
  #   h0       - a scalar
  #   sigma.v2 - a scalar
  #   s        - a Tx1 matrix
  #   A        - a KxN matrix
  #   Sigma    - an NxN matrix
  #   sigma2   - a Tx1 matrix
  #
  # priors is a list containing:
  #   h0.v      - a positive scalar
  #   h0.m      - a scalar
  #   sigmav.s  - a positive scalar
  #   sigmav.nu - a positive scalar
  #   HH        - a TxT matrix

  T             <- dim(aux$Y)[1]
  N             <- dim(aux$Y)[2]
  alpha.st      <- c(1.92677,1.34744,0.73504,0.02266,0-0.85173,-1.97278,-3.46788,-5.55246,-8.68384,-14.65000)
  sigma.st      <- c(0.11265,0.17788,0.26768,0.40611,0.62699,0.98583,1.57469,2.54498,4.16591,7.33342)
  pi.st         <- c(0.00609,0.04775,0.13057,0.20674,0.22715,0.18842,0.12047,0.05591,0.01575,0.00115)

  Lambda        <- solve(chol(aux$Sigma))
  Z             <- rowSums((aux$Y-aux$X%*%aux$A)%*%Lambda)/sqrt(N)
  Y.tilde       <- as.vector(log((Z+0.0000001)^2))
  Ytilde.alpha  <- as.matrix(Y.tilde-alpha.st[as.vector(aux$s)])

  # Sampling initial condition
  ############################################################
  V.h0.bar      <- 1/((1/priors$h0.v) + (1/aux$sigma.v2))
  m.h0.bar      <- V.h0.bar*((priors$h0.m/priors$h0.v) + (aux$H[1]/aux$sigma.v2))
  h0.draw       <- rnorm(1, mean=m.h0.bar, sd=sqrt(V.h0.bar))
  aux$h0        <- h0.draw

  # Sampling sigma.v2
  ############################################################
  sigma.v2.s    <- priors$sigmav.s + sum(c(aux$H[1]-aux$h0, diff(aux$H))^2)
  sigma.v2.draw <- sigma.v2.s/rchisq(1, priors$sigmav.nu+T)
  aux$sigma.v2  <- sigma.v2.draw

  # Sampling auxiliary states
  ############################################################
  Pr.tmp        <- simplify2array(lapply(1:10,function(x){
    dnorm(Y.tilde, mean = as.vector(aux$H+alpha.st[x]), sd=sqrt(sigma.st[x]), log=TRUE) + log(pi.st[x])
  }))
  Pr            <- t(apply(Pr.tmp, 1, function(x){exp(x-max(x))/sum(exp(x-max(x)))}))
  s.cum         <- t(apply(Pr, 1, cumsum))
  r             <- matrix(rep(runif(T), 10), ncol = 10)
  ss            <- apply(s.cum<r, 1, sum) + 1
  aux$s         <- as.matrix(ss)

  # Sampling log-volatilities using functions for tridiagonal precision matrix
  ############################################################
  Sigma.s.inv   <- diag(1/sigma.st[as.vector(aux$s)])
  D.inv         <- Sigma.s.inv + (1/aux$sigma.v2)*priors$HH
  b             <- as.matrix(Ytilde.alpha/sigma.st[as.vector(aux$s)] + (aux$h0/aux$sigma.v2)*diag(T)[,1])
  lead.diag     <- diag(D.inv)
  sub.diag      <- mgcv::sdiag(D.inv, -1)
  D.chol        <- mgcv::trichol(ld=lead.diag, sd=sub.diag)
  D.L           <- diag(D.chol$ld)
  mgcv::sdiag(D.L, -1) <- D.chol$sd
  x             <- as.matrix(rnorm(T))
  a             <- forwardsolve(D.L, b)
  draw          <- backsolve(t(D.L), a+x)
  aux$H         <- as.matrix(draw)
  aux$sigma2    <- as.matrix(exp(draw))

  return(aux)
}

The function SV.baseline.posterior below computes posterior distribution of the standard model with stochastic volatility.

SV.baseline.posterior <- function(X, Y, N, p, S, prior.distribution) {

  A.prior  <- prior.distribution$A.prior
  V.prior  <- prior.distribution$V.prior
  S.prior  <- prior.distribution$S.prior
  nu.prior <- prior.distribution$nu.prior

  Sigma.posterior   <- array(NA, c(N,N,S))
  A.posterior       <- array(NA, c(K,N,S))
  H.posterior       <- array(NA, c(T, S+1))
  B0.posterior      <- array(NA, c(N,N,S))
  B1.posterior      <- array(NA, c(N,K,S))

  # Initialise h0 (aux$sigma2)
  H.posterior[,1]     <- matrix(1,T,1)
  HH                  <- 2*diag(T)
  mgcv::sdiag(HH, -1) <- -1
  mgcv::sdiag(HH, 1)  <- -1

  # Define priors for the SV model
  priors = list(HH = HH,
                h0.m = 0,
                h0.v = 1,
                sigmav.s = 1,
                sigmav.nu = 1)

  for (s in 1:S){

    # Posterior distribution
    ############################################################
    # Specify the matrix normal-inverse Wishart posterior parameters
    # ----------------------------------------------------------
    V.bar.inv   <- t(X)%*%diag(1/H.posterior[,s])%*%X + diag(1/diag(V.prior))
    V.bar       <- solve(V.bar.inv)
    A.bar       <- V.bar%*%(t(X)%*%diag(1/H.posterior[,s])%*%Y + diag(1/diag(V.prior))%*%A.prior)
    nu.bar      <- nrow(Y) + nu.prior
    S.bar       <- S.prior + t(Y)%*%diag(1/H.posterior[,s])%*%Y + t(A.prior)%*%diag(1/diag(V.prior))%*%A.prior-t(A.bar)%*%V.bar.inv%*%A.bar
    S.bar.inv   <- solve(S.bar)
    S.bar.inv   <- 0.5*(t(S.bar.inv)+S.bar.inv) # Maintain positive-definiteness

    # Draw Posterior parameters
    # ----------------------------------------------------------
    ## Draw from the Reduced Form
    ### Draw Sigma from the inverse Wishart distribution
    Sigma.posterior.inv   <- rWishart(1, df=nu.bar, Sigma=S.bar.inv)[,,1]
    Sigma.posterior[,,s]  <- solve(Sigma.posterior.inv)

    ### Draw A from matrix-variate normal distribution
    cholSigma.s           <- chol(Sigma.posterior[,,s])
    A.posterior[,,s]      <- matrix(mvtnorm::rmvnorm(1, mean=as.vector(A.bar), sigma=Sigma.posterior[,,s]%x%V.bar), ncol=N)

    ## Draw from the Structural Form
    ### Draw B0
    B0.posterior[,,s]     <- solve(t(cholSigma.s))

    ### Draw Bplus
    B1.posterior[,,s]     <- B0.posterior[,,s]%*%t(A.posterior[,,s])

    ## Draw H from SVcommon.Gibbs.iteration function
    if (s == 1){  # initialise input arguments
      aux = list(Y = Y,
                 X = X,
                 H = matrix(1,T,1),
                 h0 = 0,
                 sigma.v2 = 1,
                 s = matrix(1,T,1),
                 A = A.posterior[,,s],
                 Sigma = Sigma.posterior[,,s],
                 sigma2 = matrix(1,T,1))
      }else{  # update input arguments
        aux = list(Y = Y,
                   X = X,
                   H = tmp$H,
                   h0 = tmp$h0,
                   sigma.v2 = tmp$sigma.v2,
                   s = tmp$s,
                   A = A.posterior[,,s],
                   Sigma = Sigma.posterior[,,s],
                   sigma2 = tmp$sigma2)
        }

    tmp <- SVcommon.Gibbs.iteration(aux, priors)
    H.posterior[,s+1] <- as.matrix(tmp$sigma2)
    }

  return(list(Sigma.posterior = Sigma.posterior,
              A.posterior = A.posterior,
              H.posterior = H.posterior,
              B1.posterior = B1.posterior,
              B0.posterior = B0.posterior))
  }

The results below show the mean of the matrices \(B_0\) and \(B_+\).

Mean of \(B_0\) Matrix

14.3027	0.7056
2.0616	14.8322

Mean of \(B_+\) Matrix

0.0477	0.9040	0.0115
0.0169	0.0176	0.9156

The results below show the mean of the matrices \(A\) and \(\Sigma\).

Mean of the \(A\) posterior

	y1	y2
constant	0.1092	-0.0395
lag of y1	0.9845	0.0160
lag of y2	0.0054	0.9893

Mean of the \(\Sigma\) posterior

	y1	y2
y1	0.0267	-0.0007
y2	-0.0007	0.0259

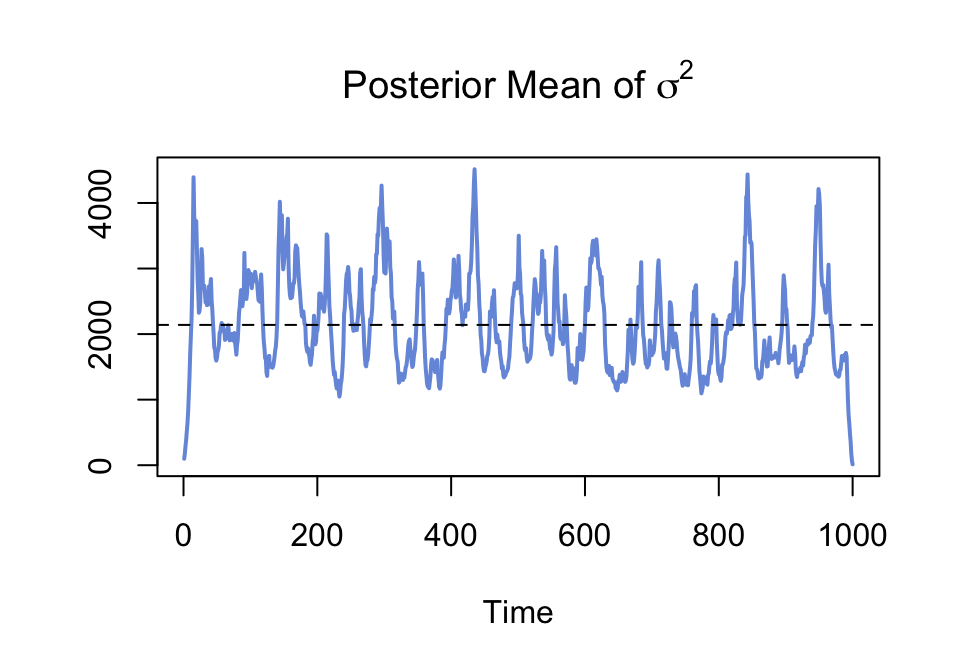

Figure 6: Plot of posterior mean of stochastic volatility (standard model with stochastic volatility)

4.4 Bayesian SVAR Model with t-distributed Errors and Stochastic Volatility

4.4.1 Model Specification

The reduced form representation in a matrix form is as follows: \[ \begin{gather} Y = XA + E \\ \\ E|X,\lambda \sim \mathcal{MN}_{T \times N}(0_{T \times N},\Sigma,\lambda\text{diag}(\sigma^2)) \end{gather} \] where the column-specific covariance matrix of error terms is set to be \(\lambda \text{diag}(\sigma^2)\).

The parameter lambda is inverse gamma 2 distributed with scale parameter \(s_{\lambda}\) and shape parameter \(\nu_{\lambda}\). We assume fixed numbers for \(s_{\lambda}\) and \(\nu_{\lambda}\) in this study. \[ \lambda \sim \mathcal{IG}2(s_{\lambda}, \nu_{\lambda}) \]

4.4.2 Estimation Procedure

Then we have the likelihood function as: \[ \begin{gather} L(A,\Sigma|Y,X,\sigma^2, \lambda) \propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\lambda \text{diag}(\sigma^2))^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2} tr \left[ \Sigma^{-1}(Y-XA)'(\lambda \text{diag}(\sigma^2))^{-1}(Y-XA) \right] \right\} \\ \end{gather} \]

Applying the same calculation procedure from the section 4.2.2, \[ \begin{align} p(A,\Sigma|Y,X,\sigma^2,\lambda) &\propto L(A,\Sigma|Y,X,\sigma^2,\lambda) \cdot p(A,\Sigma) \\ \\ &\propto L(A,\Sigma|Y,X,\sigma^2,\lambda) \cdot p(A|\Sigma) \cdot p(\Sigma) \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\lambda\text{diag}(\sigma^2))^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2} tr[\Sigma^{-1} (Y-XA)' (\lambda\text{diag}(\sigma^2))^{-1} (Y-XA) ] \right\} \\ &\quad\times \det(\Sigma)^{-\frac{N+k+\underline{\nu}+1}{2}} \cdot \exp \left\{-\frac{1}{2}tr[\Sigma^{-1}(A-\underline{A})'\underline{V}^{-1}(A-\underline{A})] \right\} \cdot \exp \left\{ -\frac{1}{2}tr[\Sigma^{-1}\underline{S}] \right\} \\ \\ &\propto \det{(\Sigma)}^{-\frac{T+N+K+\underline{\nu}+1}{2}} \cdot \det(\text{diag}(\sigma^2))^{-\frac{N}{2}} \\ &\quad\times \exp \left\{-\frac{1}{2} tr \left[\Sigma^{-1} \left[(A-\hat{A})'X'(\lambda\text{diag}(\sigma^2))^{-1}X(A-\hat{A})+(A-\underline{A})'\underline{V}^{-1}(A-\underline{A})+(Y-X\hat{A})'(\lambda\text{diag}(\sigma^2))^{-1}(Y-X\hat{A})+\underline{S} \right] \right] \right\} \\ \\ &\propto \det(\Sigma)^{-\frac{T+N+K+\underline{\nu}+1}{2}} \cdot \det(\lambda\text{diag}(\sigma^2))^{-\frac{N}{2}} \\ &\quad\times \exp \left\{-\frac{1}{2} tr[\Sigma^{-1}(Y'(\lambda\text{diag}(\sigma^2))^{-1}Y - 2A'X'(\lambda\text{diag}(\sigma^2))^{-1}Y + A'X'(\lambda\text{diag}(\sigma^2))^{-1}XA + A'\underline{V}^{-1}A -2A'\underline{V}^{-1}\underline{A} + \underline{A}'\underline{V}^{-1}\underline{A} + \underline{S})] \right\} \end{align} \]

\[ \begin{align} \overline{V} &= (X'(\lambda\text{diag}(\sigma^2))^{-1}X + \underline{V}^{-1})^{-1} \\ \overline{A} &= \overline{V}(X'(\lambda\text{diag}(\sigma^2))^{-1}Y + \underline{V}^{-1}\underline{A}) \\ \overline{S} &= \underline{S} + Y'(\lambda\text{diag}(\sigma^2))^{-1}Y + \underline{A}'\underline{V}^{-1}\underline{A} - \overline{A}'\overline{V}^{-1}\overline{A} \\ \overline{\nu} &= T + \underline{\nu} \end{align} \] The conditional posterior distribution of \(\lambda\) is derived as follows: \[ \begin{align} p(\lambda|Y,X,A,\Sigma,\sigma^2) &\propto L(A,\Sigma|Y,X,\sigma^2,\lambda) \cdot p(\lambda) \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\lambda \text{diag}(\sigma^2))^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2} tr[\Sigma^{-1} (Y-XA)' (\lambda \text{diag}(\sigma^2))^{-1} (Y-XA)] \right\} \\ &\quad\times \lambda^{-\frac{\underline{\nu_{\lambda}}+2}{2}} \cdot \exp \left\{-\frac{1}{2}\frac{\underline{s_{\lambda}}}{\lambda} \right\} \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\text{diag}(\sigma^2))^{-\frac{N}{2}} \cdot \exp \left\{-\frac{1}{2}\frac{1}{\lambda} tr[\Sigma^{-1}(Y-XA)' \text{diag}(\sigma^2)^{-1} (Y-XA)] \right\} \\ &\quad\times \lambda^{-\frac{TN}{2}} \cdot \lambda^{-\frac{\underline{\nu_{\lambda}}+2}{2}} \cdot \exp \left\{-\frac{1}{2}\frac{\underline{s_{\lambda}}}{\lambda} \right\} \\ \\ &\propto \det(\Sigma)^{-\frac{T}{2}} \cdot \det(\text{diag}(\sigma^2))^{-\frac{N}{2}} \cdot \lambda^{-\frac{TN+\underline{\nu_{\lambda}}+2}{2}} \cdot \exp \left\{-\frac{1}{2}\frac{1}{\lambda} [tr(\Sigma^{-1}(Y-XA)' \text{diag}(\sigma^2)^{-1} (Y-XA)) + \underline{s_{\lambda}}] \right\} \end{align} \] \[ \begin{align} p(\lambda|Y,X,A,\Sigma,\sigma^2) = \mathcal{IG}2(\overline{s_{\lambda}},\overline{\nu_{\lambda}}) \end{align} \] and the parameters of the posterior distribution is: \[ \begin{align} \overline{s_{\lambda}} &= tr[\Sigma^{-1}(Y-XA)' \text{diag}(\sigma^2)^{-1} (Y-XA)] + \underline{s_{\lambda}} \\ \overline{\nu_{\lambda}} &= \underline{\nu_{\lambda}} + TN \end{align} \]

4.4.3 Algorithm Validation

Gibbs Sampler

Using the parameter of the joint posterior distribution \(\overline{A}\), \(\overline{V}\),\(\overline{S}\), \(\overline{\nu}\) above, we obtain a sample of \(S\) draws from the posterior distribution.

Initialise \(h\) at \(h_t^{(0)}\) and \(\lambda\) at \(\lambda^{(0)}\).

At each iteration \(s\) where \(s\) goes from 1 to \(S\),

1. Draw \(\Sigma^{(s)} \sim P(\Sigma|Y,X,\sigma^{2(s-1)},\lambda^{(s-1)})\) from the \(\mathcal{IW}_N(\overline{S},\overline{\nu})\) distribution using \(\sigma^{2(s-1)}\) and \(\lambda^{(s-1)}\). For \(s\) = 1, use the initialised value \(h_t^{(0)}\) and \(\lambda^{(0)}\).
2. Draw \(A^{(s)} \sim P(A|Y,X,\Sigma^{(s)},\sigma^{2(s-1)},\lambda^{(s-1)})\) from the \(\mathcal{MN}_{K \times N}(\overline{A},\Sigma^{(s)}, \overline{V})\) distribution using the draws \(\Sigma^{(s)}\), \(\sigma^{2(s-1)}\) and \(\lambda^{(s-1)}\).
3. Draw \(\lambda^{(s)} \sim P(\lambda|Y,X,A^{(s)},\Sigma^{(s)},\sigma^{2(s-1)})\) from \(\mathcal{IG}2(\overline{S_{\lambda}},\overline{\nu_{\lambda}})\) distribution using the draws \(A^{(s)}\), \(\Sigma^{(s)}\) and \(\sigma^{2(s-1)}\).
4. Draw \(h_t^{(0)}\).

Output is the sample draws from the joint posterior distribution \(\left\{ {A^{(s)}, \Sigma^{(s)}} , \sigma^{2(s)} , \lambda^{(s)}\right\}^{S}_{s=1}\).

The function SV.extended.posterior below computes posterior distribution of the t-distributed error model with stochastic volatility.

SV.extended.posterior <- function(X, Y, N, p, S, prior.distribution) {

  A.prior  <- prior.distribution$A.prior
  V.prior  <- prior.distribution$V.prior
  S.prior  <- prior.distribution$S.prior
  nu.prior <- prior.distribution$nu.prior
  s.prior.lambda   <- 5    # assume that it is fixed
  nu.prior.lambda  <- 5    # assume that it is fixed
  lambda   <- s.prior.lambda/rchisq(1, nu.prior.lambda)

  Sigma.posterior   <- array(NA, c(N,N,S))
  A.posterior       <- array(NA, c(K,N,S))
  H.posterior       <- array(NA, c(T, S+1))
  lambda.posterior  <- rep(NA, S)
  B0.posterior      <- array(NA, c(N,N,S))
  B1.posterior      <- array(NA, c(N,K,S))

  # Initialise h0 (aux$sigma2)
  H.posterior[,1]     <- matrix(1,T,1)
  HH                  <- 2*diag(T)
  mgcv::sdiag(HH, -1) <- -1
  mgcv::sdiag(HH, 1)  <- -1

  # Define priors for the SV model
  priors = list(HH = HH,
                h0.m = 0,
                h0.v = 1,
                sigmav.s = 1,
                sigmav.nu = 1)

  for (s in 1:S){

    # Posterior distribution
    ############################################################
    # Specify the matrix normal-inverse Wishart posterior parameters
    # ----------------------------------------------------------
    V.bar.inv   <- t(X)%*%diag(1/(H.posterior[,s]*lambda))%*%X + diag(1/diag(V.prior))
    V.bar       <- solve(V.bar.inv)
    A.bar       <- V.bar%*%(t(X)%*%diag(1/(H.posterior[,s]*lambda))%*%Y + diag(1/diag(V.prior))%*%A.prior)
    nu.bar      <- nrow(Y) + nu.prior
    S.bar       <- S.prior + t(Y)%*%diag(1/(H.posterior[,s]*lambda))%*%Y + t(A.prior)%*%diag(1/diag(V.prior))%*%A.prior-t(A.bar)%*%V.bar.inv%*%A.bar
    S.bar.inv   <- solve(S.bar)
    S.bar.inv   <- 0.5*(t(S.bar.inv)+S.bar.inv) # Maintain positive-definiteness

    # Draw Posterior parameters
    # ----------------------------------------------------------
    ## Draw from the Reduced Form
    ### Draw Sigma from the inverse Wishart distribution
    Sigma.posterior.inv   <- rWishart(1, df=nu.bar, Sigma=S.bar.inv)[,,1]
    Sigma.posterior[,,s]  <- solve(Sigma.posterior.inv)

    ### Draw A from matrix-variate normal distribution
    cholSigma.s           <- chol(Sigma.posterior[,,s])
    A.posterior[,,s]      <- matrix(mvtnorm::rmvnorm(1, mean=as.vector(A.bar), sigma=Sigma.posterior[,,s]%x%V.bar), ncol=N)

    ### Draw lambda from inverse gamma 2 distribution
    s.posterior.lambda    <- sum(diag(Sigma.posterior.inv%*%t(Y-X%*%A.posterior[,,s])%*%diag(1/(H.posterior[,s]))%*%(Y-X%*%A.posterior[,,s]))) + s.prior.lambda
    nu.posterior.lambda   <- nrow(Y)*ncol(Y) + nu.prior.lambda
    lambda   <- s.posterior.lambda/rchisq(1, nu.posterior.lambda)
    lambda.posterior[s]   <- lambda

    ## Draw from the Structural Form
    ### Draw B0
    B0.posterior[,,s]     <- solve(t(cholSigma.s))

    ### Draw Bplus
    B1.posterior[,,s]     <- B0.posterior[,,s]%*%t(A.posterior[,,s])

    ## Draw H from SVcommon.Gibbs.iteration function
    if (s == 1){  # initialise input arguments
      aux = list(Y = Y,
                 X = X,
                 H = matrix(1,T,1),
                 h0 = 0,
                 sigma.v2 = 1,
                 s = matrix(1,T,1),
                 A = A.posterior[,,s],
                 Sigma = Sigma.posterior[,,s],
                 sigma2 = matrix(1,T,1))
      }else{  # update input arguments
        aux = list(Y = Y,
                   X = X,
                   H = tmp$H,
                   h0 = tmp$h0,
                   sigma.v2 = tmp$sigma.v2,
                   s = tmp$s,
                   A = A.posterior[,,s],
                   Sigma = Sigma.posterior[,,s],
                   sigma2 = tmp$sigma2)
        }

    tmp <- SVcommon.Gibbs.iteration(aux, priors)
    H.posterior[,s+1] <- as.matrix(tmp$sigma2)
    }

  return(list(Sigma.posterior = Sigma.posterior,
              A.posterior = A.posterior,
              H.posterior = H.posterior,
              lambda.posterior = lambda.posterior,
              B1.posterior = B1.posterior,
              B0.posterior = B0.posterior))
  }

The results below show the mean of the matrices \(B_0\) and \(B_+\).

Mean of \(B_0\) Matrix

1.9455	0.2333
0.2139	2.0119

Mean of \(B_+\) Matrix

0.0477	0.9040	0.0115
0.0169	0.0176	0.9156

The results below show the mean of the matrices \(A\) and \(\Sigma\).

Mean of the \(A\) posterior

	y1	y2
constant	0.0424	0.0128
lag of y1	0.9944	0.0081
lag of y2	-0.0002	0.9943

Mean of the \(\Sigma\) posterior

	y1	y2
y1	0.2650	-0.0172
y2	-0.0172	0.2538

Mean of the \(\lambda\) posterior

lambda
0.4185

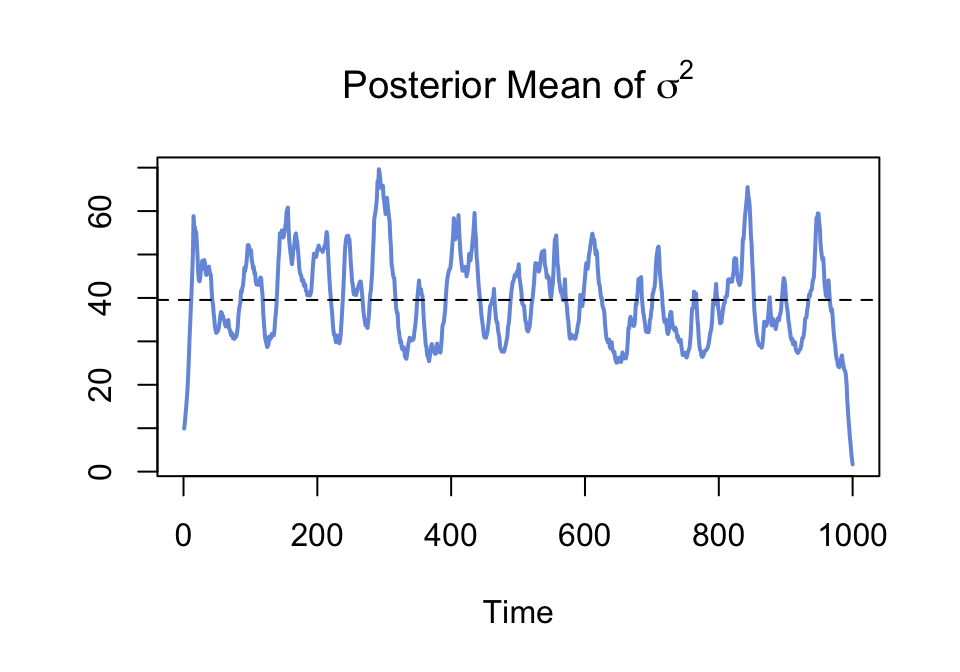

Figure 7: Plot of posterior mean of stochastic volatility (t-distributed error model with stochastic volatility)

5. Empirical Results

5.1 Standard Bayesian SVAR model

The result below shows the mean of \(B=B_0^{-1}\) matrix. The sign restrictions imposed in the second column are shown in the table.

Mean of \(B\) Matrix

0e+00	-0.0032	0.0000	0e+00	0e+00	0e+00
0e+00	0.1009	0.0008	-4e-04	-1e-03	5e-04
0e+00	-0.0017	0.0000	0e+00	0e+00	0e+00
-1e-04	0.0119	0.0002	0e+00	0e+00	0e+00
0e+00	0.0041	0.0001	0e+00	-2e-04	-1e-04
-1e-04	-0.0278	-0.0022	-4e-04	9e-04	1e-03

The figure below shows that the restrictions on the \(B\) matrix is correctly imposed.

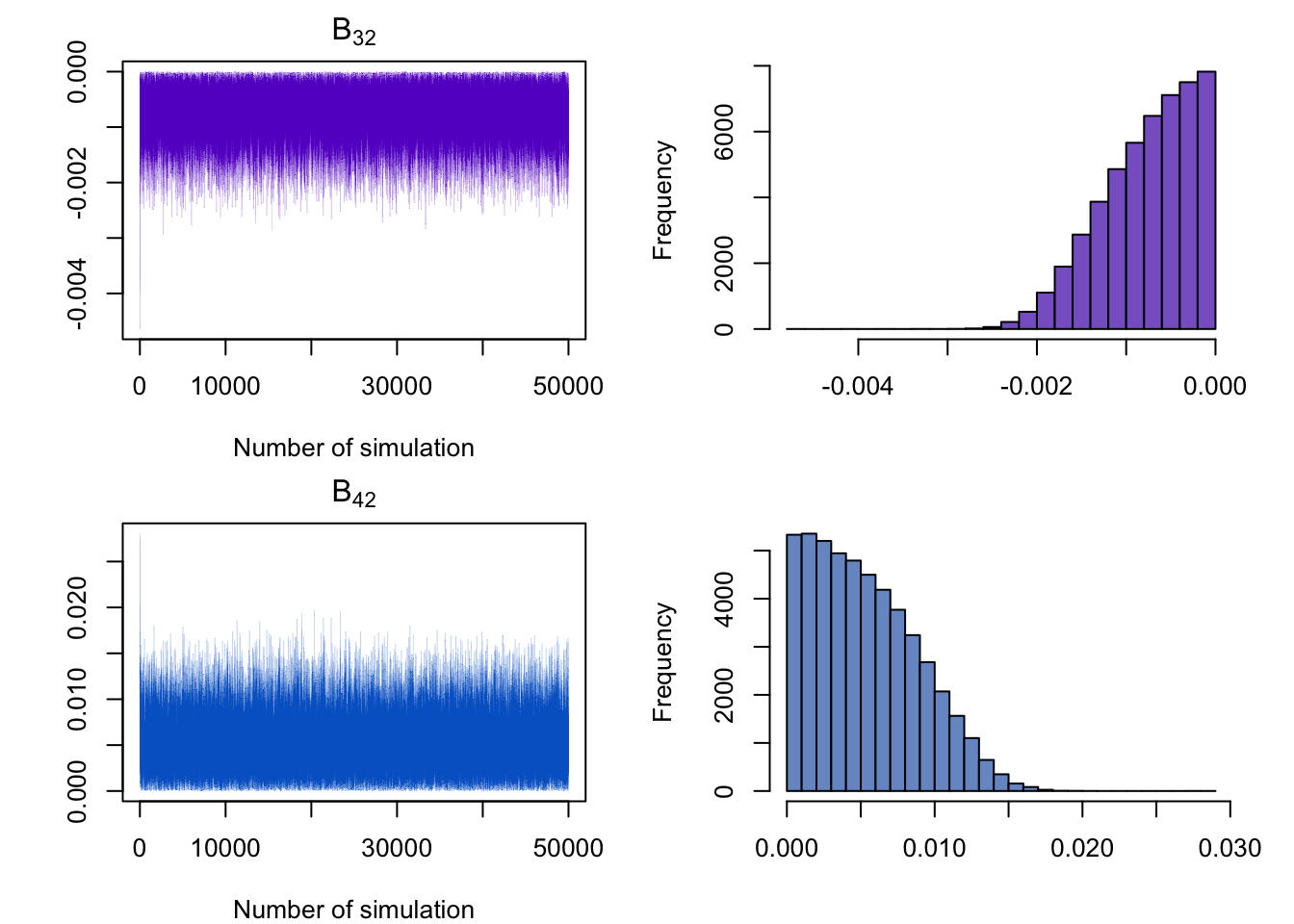

Figure 8: Trace plot of \(B\) posterior draws (Standard model)

Mean of the \(A\) posterior

gdp	ICR	cpi	EXR	stp	vol
0.0795	1.9922	0.0069	0.0819	0.1216	-3.9686
0.9906	-0.1810	-0.0010	0.0059	0.0276	-0.4969
-0.0026	1.4584	0.0041	-0.0002	0.0029	-0.0557
-0.0059	-0.1957	0.9991	-0.0034	0.0095	-0.3279
0.0015	0.0581	-0.0026	0.9833	-0.0071	0.2008
0.0027	0.1622	0.0017	0.0026	0.9800	0.6975
-0.0044	-0.0689	-0.0006	-0.0031	-0.0212	0.4582
-0.0019	-0.0480	-0.0001	0.0015	0.0069	-0.1210
0.0025	-0.4596	-0.0032	-0.0051	-0.0164	0.0116
-0.0012	-0.0570	-0.0003	-0.0001	0.0038	-0.0915
0.0010	-0.0648	-0.0007	-0.0142	-0.0079	0.0850
0.0013	-0.0004	0.0004	-0.0061	-0.0217	0.1772
0.0025	0.1010	0.0012	0.0066	0.0118	0.0907
-0.0007	-0.0253	0.0000	0.0009	0.0034	-0.0617
0.0001	-0.0777	-0.0006	0.0043	0.0068	-0.0011
-0.0005	-0.0275	-0.0001	0.0002	0.0016	-0.0406
0.0004	-0.0466	-0.0001	-0.0066	-0.0018	0.0322
0.0006	-0.0124	0.0001	-0.0014	-0.0093	0.0581
0.0014	-0.0432	-0.0002	0.0011	0.0003	0.0993
-0.0003	-0.0173	0.0000	0.0007	0.0021	-0.0296
-0.0011	0.0091	-0.0002	0.0006	0.0039	0.0699
-0.0002	-0.0146	-0.0001	0.0002	0.0013	-0.0241
0.0000	-0.0219	0.0000	-0.0032	0.0011	0.0220
0.0001	-0.0103	0.0002	-0.0003	-0.0040	0.0283
0.0005	-0.0150	0.0007	0.0048	-0.0019	-0.0478

Mean of the \(\Sigma\) posterior

gdp	ICR	cpi	EXR	stp	vol
1e-04	0.0003	0e+00	0.0000	0.0001	-0.0005
3e-04	0.0922	4e-04	0.0043	0.0019	-0.0036
0e+00	0.0004	0e+00	0.0000	0.0000	-0.0003
0e+00	0.0043	0e+00	0.0012	0.0009	-0.0066
1e-04	0.0019	0e+00	0.0009	0.0027	-0.0155
-5e-04	-0.0036	-3e-04	-0.0066	-0.0155	0.3220

Figure 9 shows the response to a positive monetary policy shock on the variables. In the short run, GDP gradually decreases, but a year after the shock, GDP decreases at a steeper rate. Interest rates and consumer price index immediately respond to the shock and normalise after five years. The exchange rate displays a downward trend over five years. The stock price has a positive impact in the short run, but it does not have a positive effect in the long run. GDP is the only variable that is statistically different from zero. The shaded area represents 68% of the credibility interval.

Figure 9: Plot of impulse response functions to monetary policy shock (Standard model)

5.2 Bayesian SVAR Model with t-distributed Errors

The result below shows the mean of \(B=B_0^{-1}\) matrix. The sign restrictions imposed in the second column are shown in the table.

Mean of \(B\) Matrix

0e+00	-0.0015	0e+00	0e+00	0e+00	0e+00
-1e-04	0.0482	4e-04	2e-04	1e-04	0e+00
0e+00	-0.0008	0e+00	0e+00	0e+00	0e+00
0e+00	0.0053	0e+00	0e+00	0e+00	0e+00
0e+00	0.0020	0e+00	0e+00	0e+00	0e+00
-7e-04	-0.0141	3e-04	1e-04	2e-04	-3e-04

The figure below shows that the restrictions on the \(B\) matrix is correctly imposed.

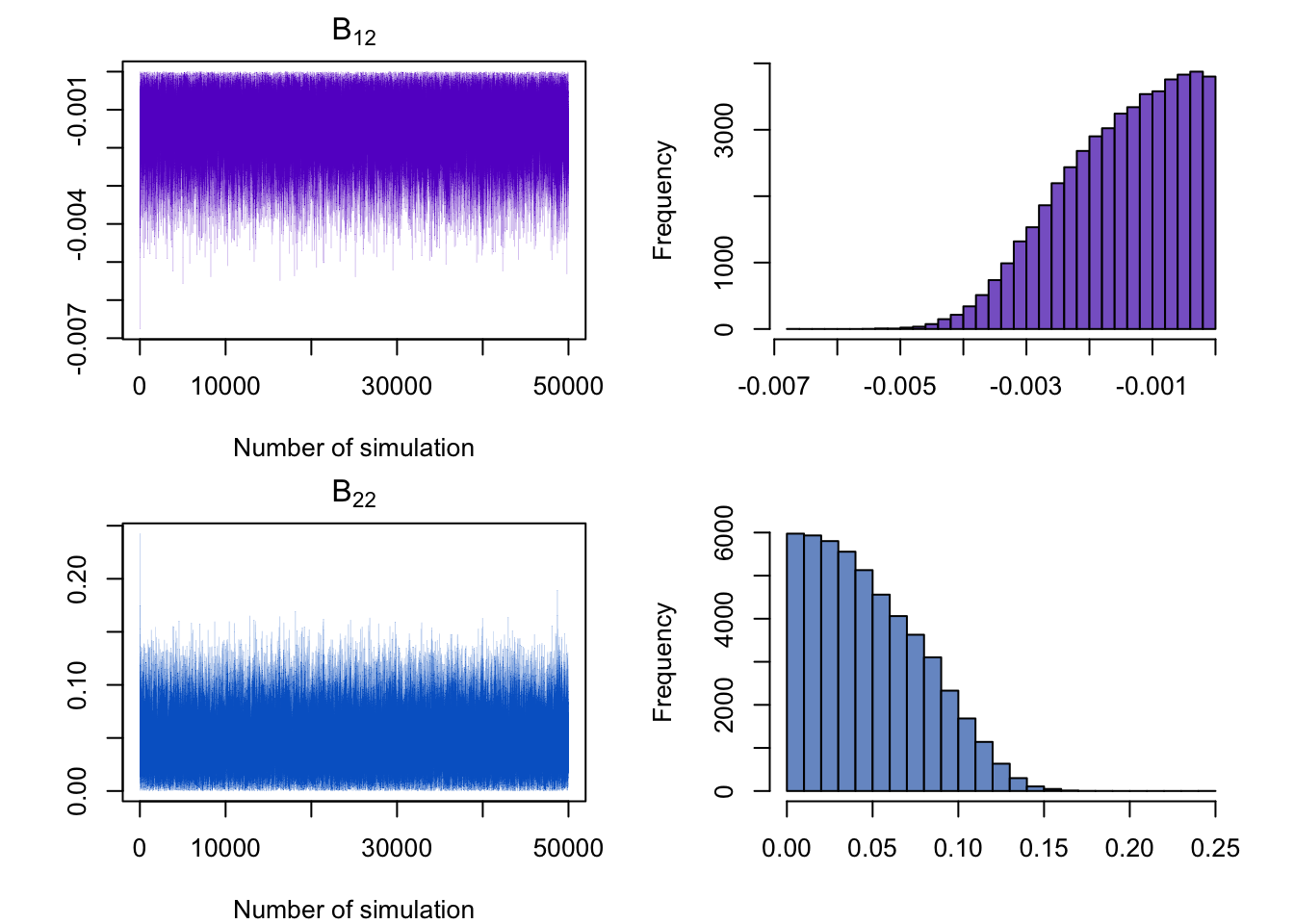

Figure 10: Trace plot of \(B\) posterior draws (t-distributed error model)

Mean of the \(A\) posterior

gdp	ICR	cpi	EXR	stp	vol
0.0392	1.1563	0.0044	0.0699	0.1244	-3.1898
0.9973	-0.0799	-0.0002	0.0011	0.0050	-0.1369
-0.0009	1.2693	0.0027	-0.0020	-0.0042	-0.0267
-0.0022	-0.0921	0.9997	-0.0012	0.0020	-0.1033
0.0002	-0.0097	-0.0010	0.9903	-0.0031	0.0988
0.0001	0.0422	0.0010	-0.0007	0.9852	0.2784
-0.0037	-0.0658	-0.0004	-0.0025	-0.0202	0.5438
-0.0006	-0.0213	0.0000	0.0002	0.0012	-0.0333
0.0007	-0.2079	-0.0014	-0.0012	-0.0046	0.0071
-0.0005	-0.0254	-0.0001	-0.0002	0.0008	-0.0276
0.0001	-0.0249	-0.0003	-0.0046	-0.0023	0.0263
0.0001	-0.0034	0.0002	-0.0017	-0.0072	0.0571
0.0019	0.0527	0.0008	0.0051	0.0076	0.0626
-0.0002	-0.0103	0.0000	0.0002	0.0007	-0.0168
0.0000	-0.0902	-0.0007	0.0015	0.0028	0.0134
-0.0002	-0.0120	-0.0001	0.0000	0.0004	-0.0117
0.0001	-0.0163	-0.0001	-0.0021	-0.0006	0.0098
0.0000	-0.0053	0.0001	-0.0004	-0.0029	0.0196
0.0008	-0.0181	0.0000	0.0017	0.0010	0.0537
-0.0001	-0.0068	0.0000	0.0001	0.0004	-0.0086
-0.0004	-0.0364	-0.0005	0.0009	0.0031	0.0247
-0.0001	-0.0065	0.0000	0.0000	0.0002	-0.0071
0.0000	-0.0088	-0.0001	-0.0010	0.0002	0.0059
0.0000	-0.0049	0.0001	-0.0001	-0.0013	0.0091
0.0003	-0.0128	0.0003	0.0025	-0.0008	-0.0172

Mean of the \(\Sigma\) posterior

gdp	ICR	cpi	EXR	stp	vol
0e+00	0.0001	0e+00	0.0000	0.0000	-0.0001
1e-04	0.0228	1e-04	0.0009	0.0004	-0.0004
0e+00	0.0001	0e+00	0.0000	0.0000	-0.0001
0e+00	0.0009	0e+00	0.0003	0.0002	-0.0013
0e+00	0.0004	0e+00	0.0002	0.0006	-0.0031
-1e-04	-0.0004	-1e-04	-0.0013	-0.0031	0.0709

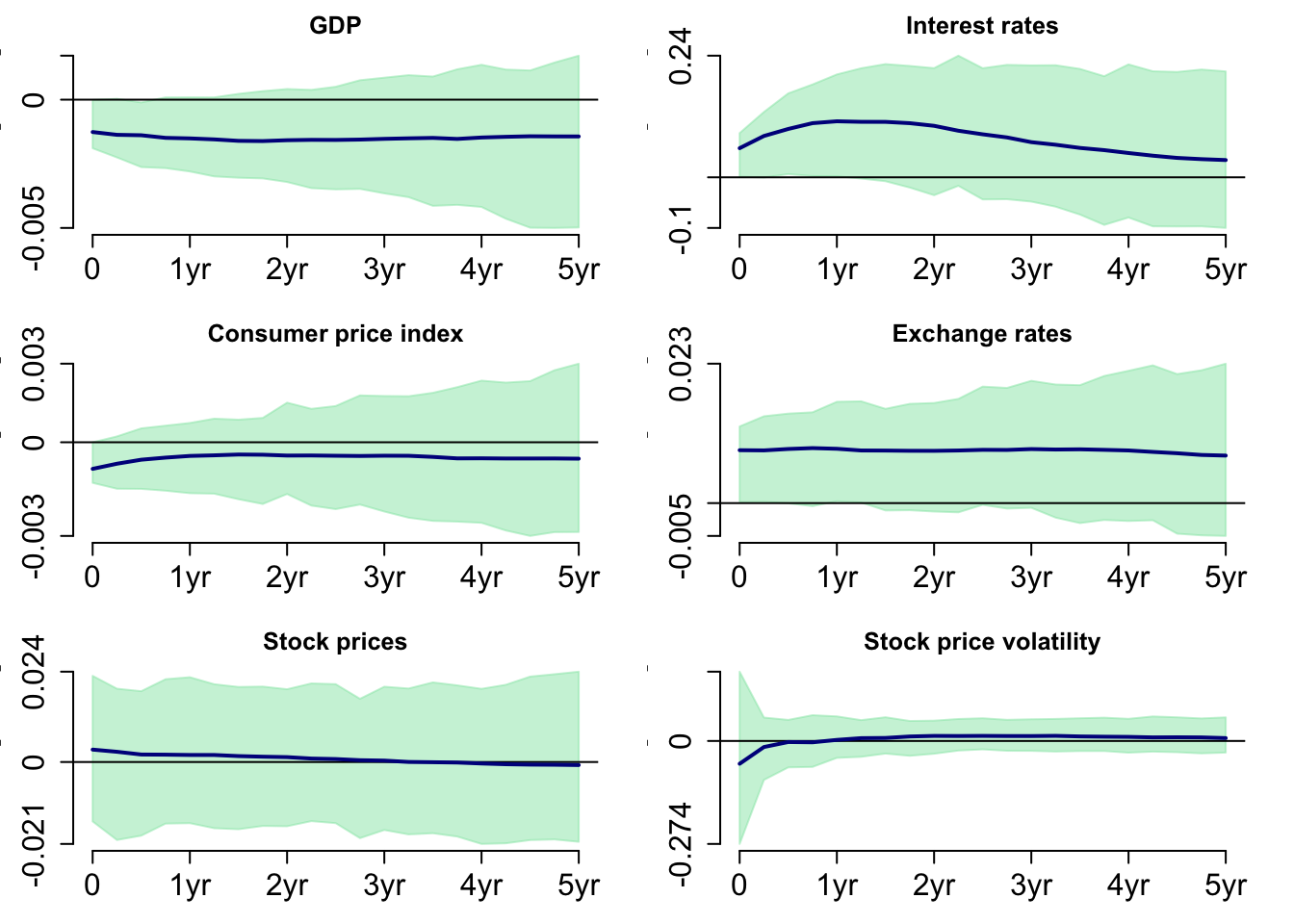

Figure 11 shows the response to a positive monetary policy shock on the variables. The figure shows similar trend as Figure 8, however, it shows flatter line. Not surprisingly, GDP is the only variable that is statistically different from zero.

Figure 11: Plot of impulse response functions to monetary policy shock (t-distributed error model)

5.3 Bayesian SVAR Model with Stochastic Volatility

The result below shows the mean of \(B=B_0^{-1}\) matrix. The sign restrictions imposed in the second column are shown in the table.

Mean of \(B\) Matrix

0e+00	-0.0004	0e+00	0e+00	0e+00	0e+00
1e-04	0.0167	1e-04	-1e-04	2e-04	1e-04
0e+00	-0.0003	0e+00	0e+00	0e+00	0e+00
0e+00	0.0020	0e+00	0e+00	0e+00	0e+00
0e+00	0.0004	0e+00	0e+00	0e+00	0e+00
-1e-04	-0.0088	-2e-04	-1e-04	2e-04	1e-04

The figure below shows that the restrictions on the \(B\) matrix is correctly imposed.

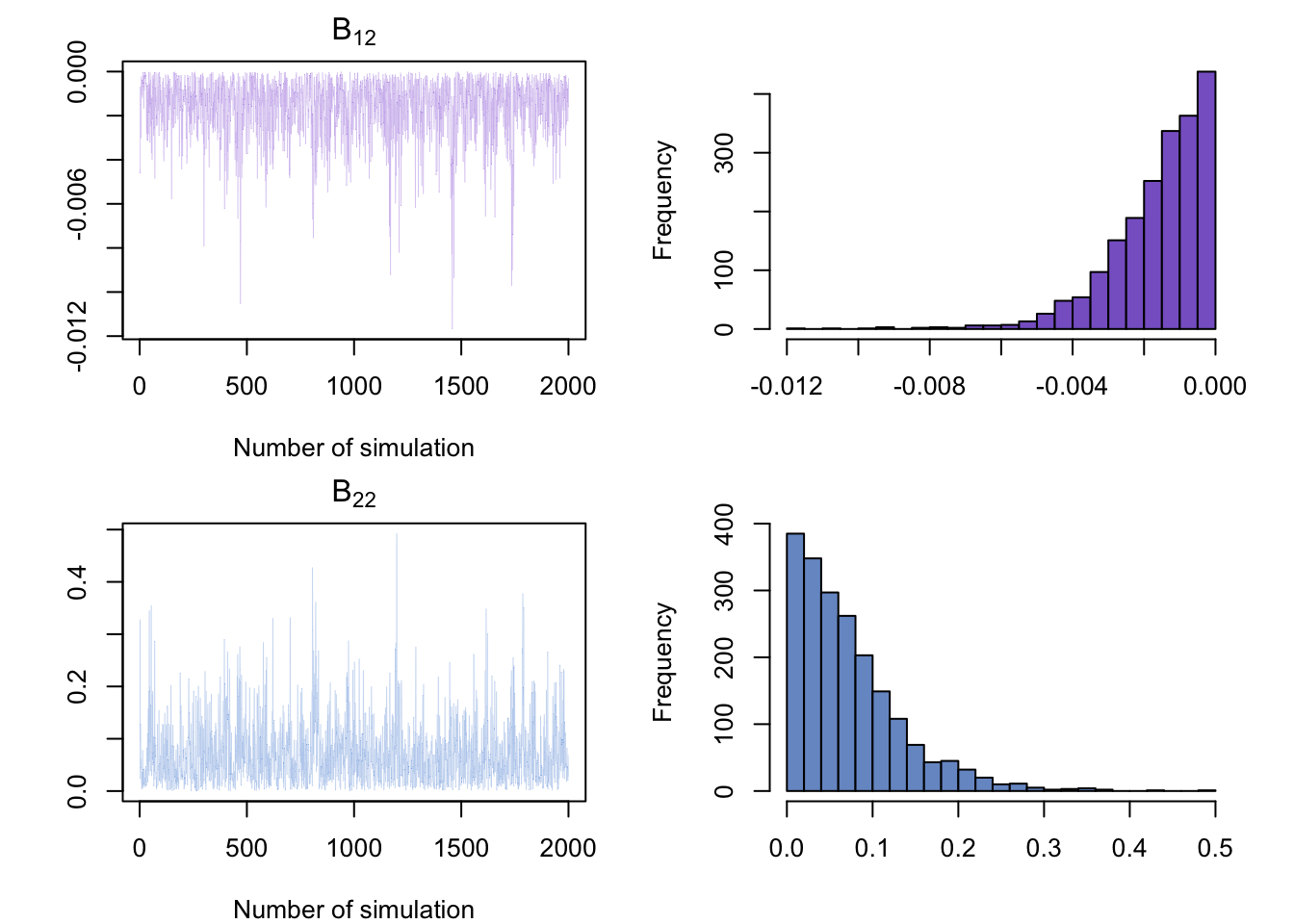

Figure 12: Trace plot of \(B\) posterior draws (standard model with stochastic volatility)

Mean of the \(A\) posterior

gdp	ICR	cpi	EXR	stp	vol
0.0128	-0.0353	-0.0021	0.0107	0.0425	-1.0912
0.9997	-0.0079	0.0002	0.0010	0.0011	-0.0536
-0.0002	1.0719	0.0007	0.0012	-0.0030	-0.0129
-0.0004	-0.0068	1.0002	0.0005	0.0000	-0.0399
-0.0001	-0.0059	0.0000	0.9981	0.0004	0.0110
0.0000	0.0246	0.0005	0.0000	0.9960	0.0195
0.0004	-0.0023	0.0003	0.0041	-0.0023	0.6635
-0.0001	-0.0022	0.0001	0.0002	0.0003	-0.0133
0.0002	-0.0369	-0.0002	0.0004	0.0011	0.0094
-0.0001	-0.0022	0.0001	0.0001	0.0000	-0.0103
0.0000	-0.0032	0.0000	-0.0007	0.0002	0.0027
0.0000	0.0069	0.0001	0.0001	-0.0012	-0.0019
-0.0002	0.0080	-0.0001	0.0002	0.0026	-0.0028
0.0000	-0.0011	0.0000	0.0001	0.0001	-0.0060
0.0002	-0.0300	-0.0002	0.0001	0.0010	0.0031
0.0000	-0.0012	0.0000	0.0001	0.0000	-0.0046
0.0000	-0.0026	0.0000	-0.0004	0.0001	0.0009
0.0000	0.0022	0.0000	0.0002	-0.0004	-0.0030
0.0001	0.0013	0.0000	0.0010	-0.0010	0.0239
0.0000	-0.0008	0.0000	0.0001	0.0001	-0.0032
0.0002	-0.0221	-0.0002	-0.0002	0.0006	0.0032
0.0000	-0.0007	0.0000	0.0000	0.0000	-0.0024
0.0000	-0.0019	0.0000	-0.0002	0.0001	0.0005
0.0000	0.0004	0.0000	0.0002	-0.0002	-0.0015
0.0000	0.0043	0.0001	0.0007	-0.0010	-0.0075

Mean of the \(\Sigma\) posterior

gdp	ICR	cpi	EXR	stp	vol
0	0.0000	0	0e+00	0e+00	0.0000
0	0.0032	0	0e+00	-2e-04	0.0007
0	0.0000	0	0e+00	0e+00	0.0000
0	0.0000	0	0e+00	0e+00	-0.0002
0	-0.0002	0	0e+00	1e-04	-0.0007
0	0.0007	0	-2e-04	-7e-04	0.0173

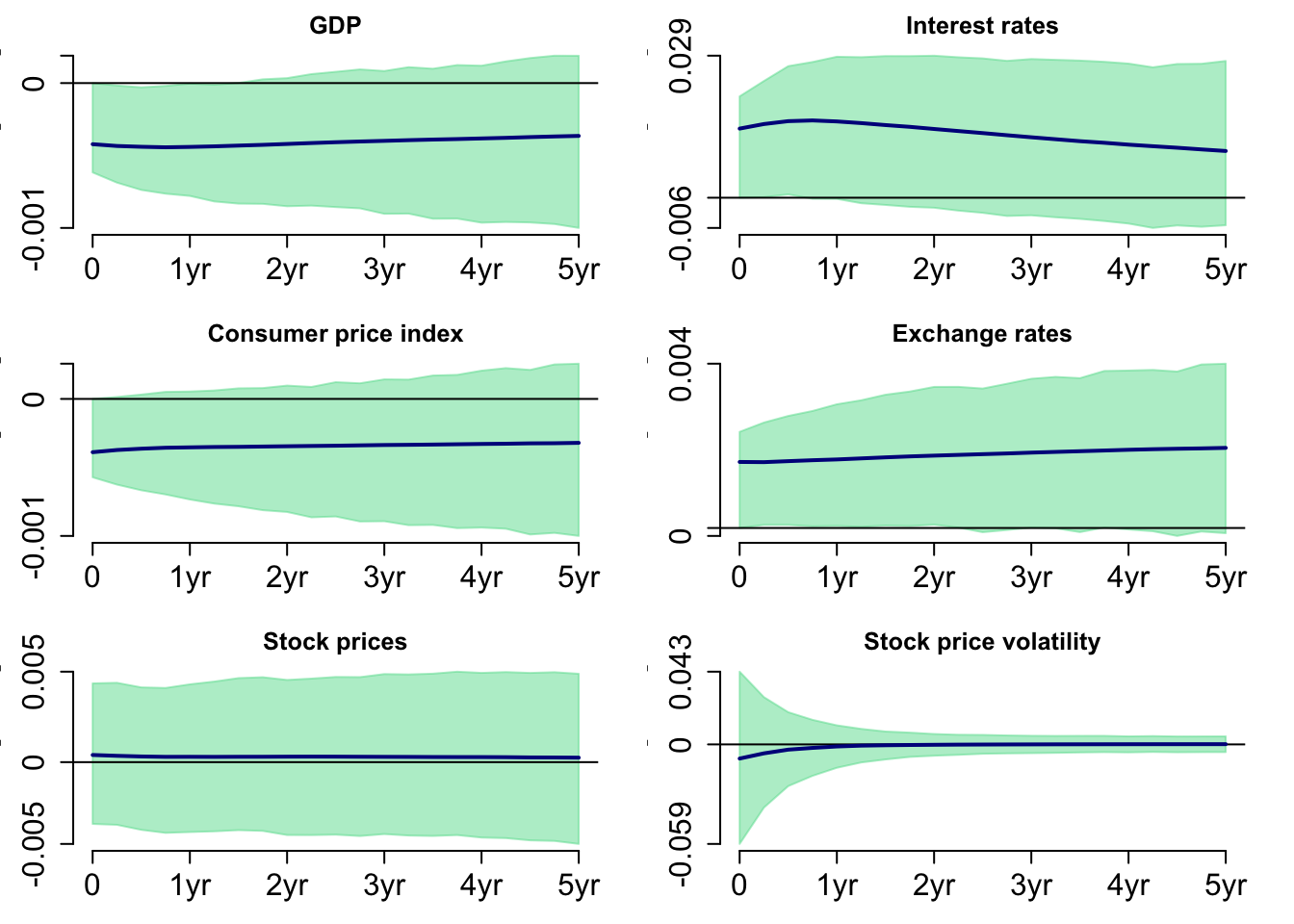

Figure 13 shows the response to a positive monetary policy shock on the variables. Unlike the two figures above, GDP and exchange rates show increasing trend. However, we cannot observe any significance on variables in this figure.

Figure 13: Plot of impulse response functions to monetary policy shock (Standard model with Stochastic Volatility)

5.4 Bayesian SVAR Model with t-distributed Errors and Stochastic Volatility

The result below shows the mean of \(B=B_0^{-1}\) matrix. The sign restrictions imposed in the second column are shown in the table.

Mean of \(B\) Matrix

0.0000	-0.0016	-0.0001	-1e-04	0.0000	0.0000
0.0015	0.0721	-0.0043	6e-04	0.0053	0.0017
0.0000	-0.0013	0.0000	0e+00	0.0000	0.0001
-0.0003	0.0105	-0.0001	0e+00	0.0001	-0.0001
0.0000	0.0037	-0.0005	-3e-04	-0.0010	-0.0007
0.0074	-0.0684	0.0099	-1e-03	0.0123	0.0058

The figure below shows that the restrictions on the \(B\) matrix is correctly imposed.

Figure 14: Trace plot of \(B\) posterior draws (standard model with stochastic volatility)

Mean of the \(A\) posterior

gdp	ICR	cpi	EXR	stp	vol
0.0468	1.3637	-0.0031	-0.0200	0.0201	-3.1718
0.9947	-0.2116	-0.0004	0.0131	0.0347	-0.5394
-0.0013	1.3630	0.0029	0.0030	-0.0035	-0.1140
-0.0040	-0.2011	0.9996	0.0038	0.0016	-0.3663
-0.0007	0.0212	-0.0003	0.9789	-0.0043	0.1976
0.0028	0.1914	0.0027	-0.0080	0.9734	0.6862
0.0005	-0.0204	0.0002	0.0003	-0.0048	0.3798
-0.0013	-0.0531	0.0000	0.0019	0.0072	-0.1098
0.0011	-0.2773	-0.0017	0.0034	0.0056	0.1381
-0.0011	-0.0587	-0.0002	0.0012	0.0018	-0.0871
0.0003	-0.0087	0.0000	-0.0096	0.0002	0.0897
0.0012	0.0672	-0.0003	-0.0020	-0.0111	0.1484
-0.0007	0.0299	-0.0005	0.0001	0.0056	0.0766
-0.0006	-0.0220	0.0001	0.0010	0.0031	-0.0570
-0.0004	-0.0872	-0.0006	-0.0007	0.0017	-0.0374
-0.0005	-0.0277	-0.0001	0.0003	0.0004	-0.0265
0.0003	-0.0261	-0.0001	-0.0069	-0.0007	0.0499
0.0003	0.0030	-0.0006	0.0040	-0.0023	0.0204
0.0009	0.0025	0.0001	0.0059	-0.0042	0.1658
-0.0002	-0.0157	0.0000	0.0003	0.0020	-0.0330
0.0002	-0.0360	-0.0003	-0.0022	-0.0028	0.0343
-0.0002	-0.0157	0.0000	0.0000	0.0001	-0.0133
0.0002	-0.0172	-0.0001	-0.0040	0.0004	0.0232
-0.0001	-0.0122	-0.0001	0.0029	-0.0002	0.0018
-0.0002	0.0066	0.0004	0.0053	-0.0020	-0.0706

Mean of the \(\Sigma\) posterior

gdp	ICR	cpi	EXR	stp	vol
0e+00	0.0001	0e+00	0.0000	-0.0001	0.0005
1e-04	0.0614	1e-04	0.0002	-0.0039	0.0189
0e+00	0.0001	0e+00	0.0000	0.0000	-0.0001
0e+00	0.0002	0e+00	0.0010	0.0003	-0.0083
-1e-04	-0.0039	0e+00	0.0003	0.0028	-0.0223
5e-04	0.0189	-1e-04	-0.0083	-0.0223	0.4353

Figure 15 shows the response of the variables to a positive monetary policy shock. It shows similar results as Figures 8 and 9; however, no variables are statistically different from zero.

Figure 15: Plot of impulse response functions to monetary policy shock (t-distributed error model with Stochastic Volatility)

6. Conclusion

This research examines the impact of monetary policy shocks on stock price volatility in the Australian market. A SVAR model identified using sign restrictions. The findings from the first two models indicate a small negative influence of positive monetary policy shocks on GDP. The outcomes are promising for the use of Bayesian methods for stock price volatility data. The study demonstrates the flexibility of Bayesian techniques for adapting to various modeling scenarios, suggesting that further enhancements and explorations of this approach are valuable for future studies.

References
